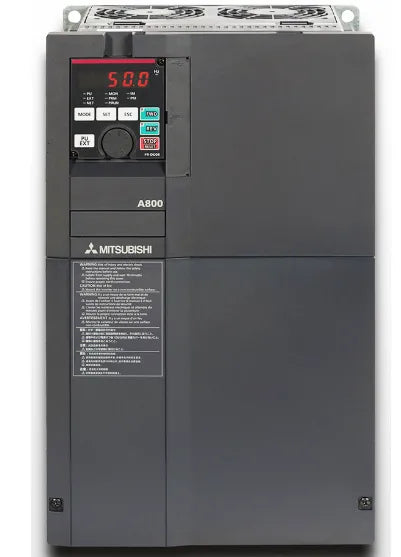

Mitsubishi FR-A840-00126-2-60 Inverter 3.7KW FRA84000126260

Description:

FRA84000126260 VARIABLE FREQUENCY DRIVE FR-800 SERIES 3-PHASE 400 V CLASS STANDARD MODEL 9 AMP 3.7 KW 400 / 415/ 480 VAC - SUPPLY VOLTAGE 0.2- 590 HZ (OUTPUT) NETWORK FREQUENCY CA TYPE - RS-485 W/ CONFORMAL COATING W/O PLATED CONDUCTOR The Mitsubishi FR-A840-00126-2-60 is a sophisticated and reliable inverter designed to provide precise control and efficiency for AC motors up to 3.7 kW. Part of Mitsubishi's FR-A800 series, this inverter excels in delivering high performance and energy savings across various industrial applications, including pumps, fans, and conveyor systems. With advanced features such as vector control, multiple operating modes, and built-in diagnostic functions, the FR-A840-00126-2-60 ensures smooth motor operation and enhanced system reliability. Its compact design and user-friendly interface make it a versatile choice for integrating into existing automation setups.

Technical Specifications:

• Model: FR-A840-00126-2-60
• Type: Inverter (Variable Frequency Drive)
• Rated Output Power: 3.7 kW (5.0 HP)
• Input Voltage: 400V AC (±10%)
• Output Voltage: 0 to 400V AC
• Rated Current: 8.0A
• Frequency Range: 0.00 to 400.0 Hz
• Control Method: Vector control (open loop) and V/f control
• Cooling Method: Forced air cooling
• Operating Temperature Range: -10°C to 50°C
• Operating Humidity Range: 0% to 90% RH (non-condensing)
• Protection Class: IP20
• Dimensions: 150 mm (W) x 240 mm (H) x 170 mm (D)
• Weight: Approximately 3.5 kg
• Communication Interfaces: RS-485 (Modbus), optional communication cards available
• Features: Built-in braking transistor, PID control, programmable function blocks, and various protective features
• Compliance: CE, RoHS
