Mitsubishi

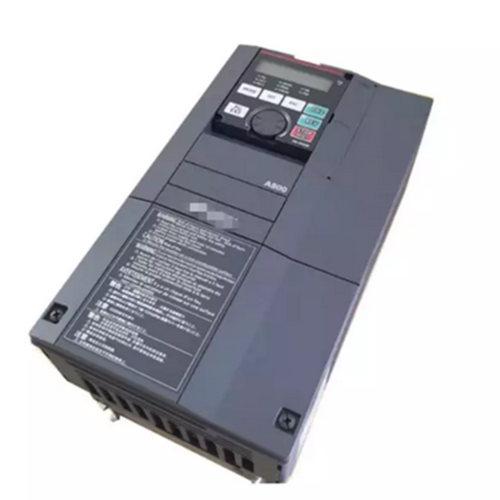

Mitsubishi FR-A840-02600-2-60(90kw)

Mitsubishi FR-A840-02600-2-60(90kw)

Condition
Regular price $11,040.00
Regular price Sale price $11,040.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

The Mitsubishi FR-A840-02600-2-60 is a high-capacity variable frequency drive (VFD) from the FR-A800 series, engineered for advanced motor control and energy efficiency in demanding industrial environments. This 3-phase 240V inverter delivers 260kW of output power and supports both V/Hz and vector control modes, including real sensor and sensorless vector control. It features intelligent predictive maintenance functions, built-in USB for easy configuration, and flexible I/O options. Suitable for heavy-duty applications such as compressors, conveyors, and extruders, the FR-A840 offers reliable performance with built-in safety features and seamless system integration.

TECHNICAL SPECIFICATIONS:

Model: FR-A840-02600-2-60
Series: FR-A800
Output Power: 260 kW (approx. 349 HP)
Input Voltage: 3-phase 200–240V AC, 50/60Hz
Output Voltage: 3-phase 0–input voltage
Rated Output Current: Approx. 966A
Control Method: V/Hz, Vector Control (with/without encoder), Advanced Magnetic Flux Vector Control
Frequency Range: 0.01 to 590 Hz
Overload Capacity: 150% for 60 sec (HD rating)
Built-in Features: USB port, Safety STO (SIL2/PLd), PLC functionality
I/O Terminals: Configurable digital/analog I/O, relay output
Communication Options: Modbus RTU, optional CC-Link, Ethernet/IP, Profibus, etc.
Cooling Method: Forced air cooling
Mounting: Panel mount
Enclosure Rating: Open type (IP00/IP20 with optional cover)
Ambient Temperature: –10°C to +50°C (14°F to 122°F)
Dimensions: Approx. 700 mm x 500 mm x 350 mm (H x W x D)
Weight: Approx. 110 kg (242.5 lbs)
