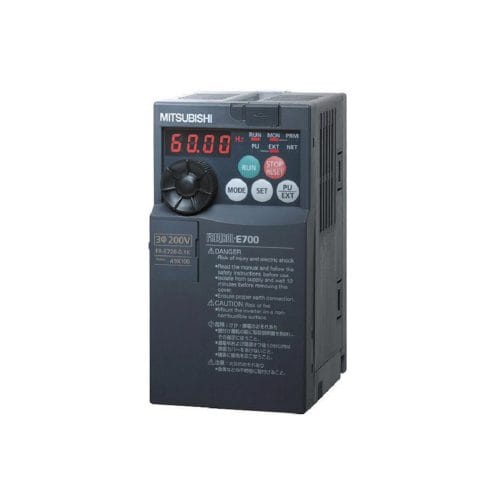

Mitsubishi FR-E720-0.2K 3 PHASE FREQUENCY INVERTER PLC MODULE FRE7200.2K

Description:

The FR-E720-0.2K is a high-efficiency, compact frequency inverter designed for precise motor control in industrial automation systems. This drive excels in providing smooth and reliable operation for AC motors, featuring advanced vector control technology that ensures optimal performance across varying loads. With its robust design, the FR-E720-0.2K supports a wide range of applications, offering easy integration and exceptional energy efficiency. It includes user-friendly programming options and comprehensive protection features, making it ideal for enhancing productivity and system reliability in diverse industrial settings.

Technical Specifications:

• Model: FR-E720-0.2K
• Type: Frequency Inverter
• Input Voltage: 200-240V AC (Single-Phase)
• Output Voltage: 200-240V AC
• Rated Output Power: 0.2 kW
• Rated Output Current: 1.3 A
• Frequency Range: 0.1 Hz to 400 Hz
• Control Method: Vector Control
• Overload Capacity: 150% for 1 minute
• Built-in Functions: PID control, multi-function input/output terminals, motor protection
• Protection Features: Over-voltage, under-voltage, over-current, and over-temperature protection
• Dimensions: 130 x 80 x 135 mm
• Weight: 1.2 kg
• Operating Temperature Range: 0°C to +50°C
