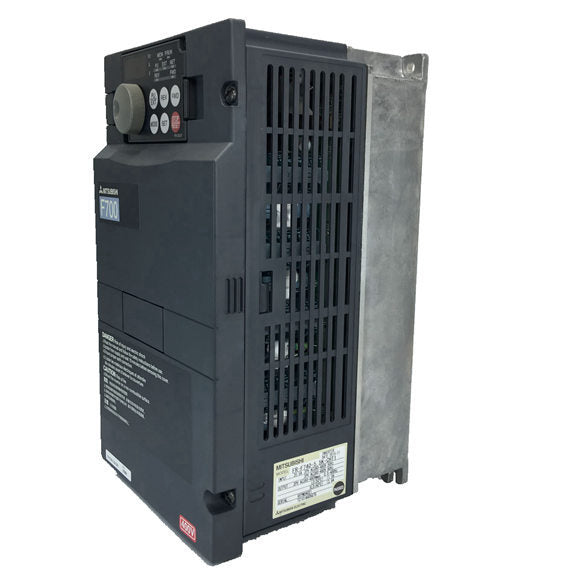

Mitsubishi FR-F740-3.7K-CHT FREQUENCY INVERTER DRIVE PLC FRF7403.7KCHT

DESCRIPTION:

The Mitsubishi FR-F740-3.7K-CHT is a variable frequency drive (VFD) designed specifically for fan and pump control applications. Part of the F700 series, this inverter is engineered for energy savings and optimized motor control in HVAC systems, water treatment, and industrial fluid-handling systems. It features advanced PID control, auto energy-saving modes, and long-life components for extended reliability and efficiency.

TECHNICAL SPECIFICATIONS:
Manufacturer: Mitsubishi Electric
Model Number: FR-F740-3.7K-CHT
Series: F700
Input Voltage: 3-phase, 380–480V AC
Output Power: 3.7 kW (5 HP)
Rated Output Current: approximately 9 A
Frequency Range: 0.2 to 400 Hz
Control Method: Sine wave PWM
Overload Capacity: 150% for 60 seconds
Cooling Method: Forced air cooling
Protection Class: IP00
Communication Options: Modbus RTU (standard), optional CC-Link, Profibus, DeviceNet, and Ethernet
Display: Digital operator panel
Dimensions (approximate): 260 mm (H) × 150 mm (W) × 140 mm (D)
Weight: approximately 3.5 kg
