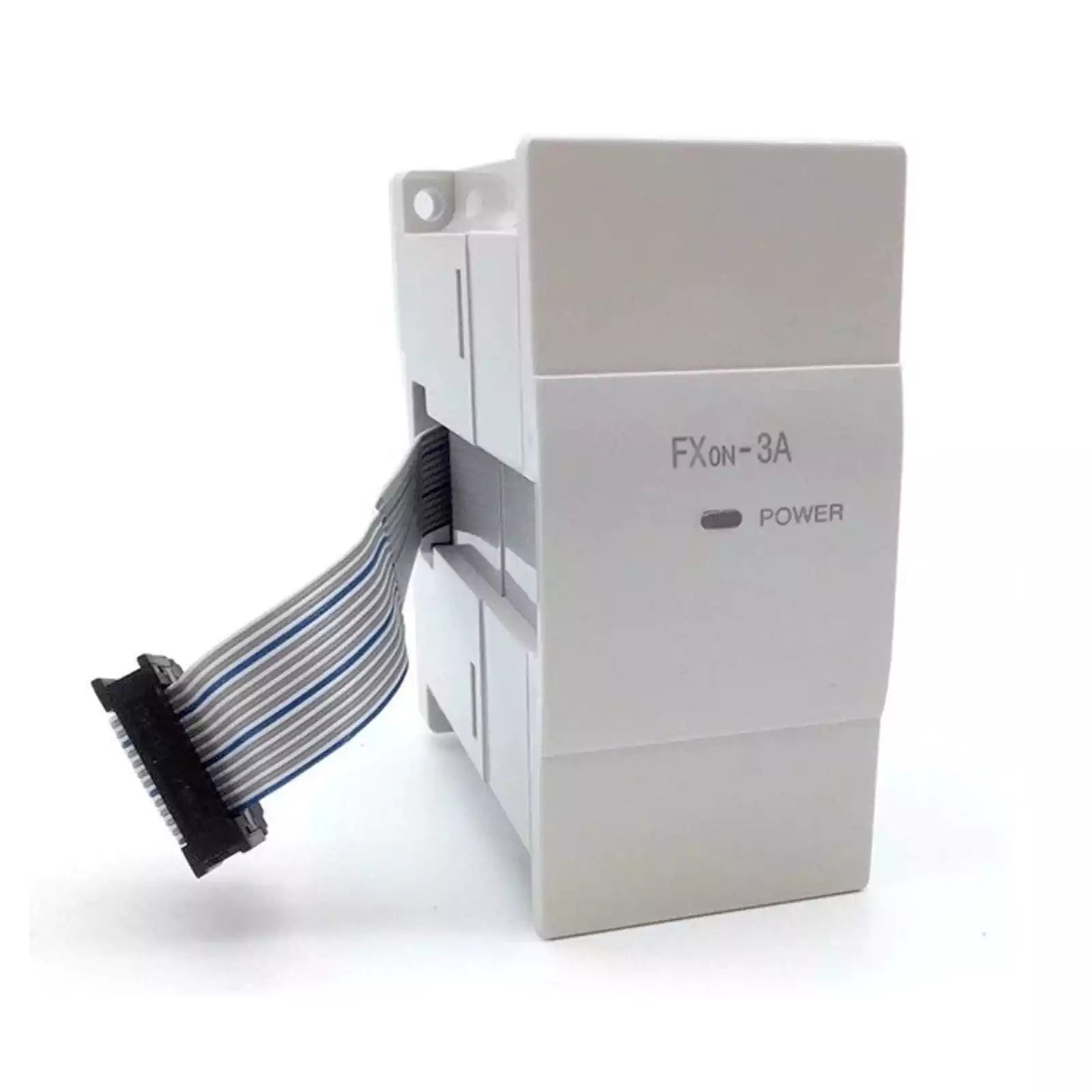

Mitsubishi FX0N-3A Programmable Controller PLCI/O Module Automation System F FX0N3A

Description:

FX0N3A DISCONTINUED BY MANUFACTURER I/O EXPANSION MODULE FX SERIES 2 INPUT 1 OUTPUT The FX0N-3A is a compact and versatile relay output expansion module from Mitsubishi Electric, designed to enhance the capabilities of the FX0N series programmable logic controllers (PLCs). This module provides 3 additional relay output channels, making it ideal for applications requiring increased switching capacity and flexibility. Its reliable performance and easy integration with the FX0N PLC series allow for seamless control of various electrical devices and systems in industrial automation environments.

Technical Specifications:

• Type: Relay Output Expansion Module
• Compatibility: Mitsubishi FX0N Series PLCs
• Number of Outputs: 3
• Output Type: Relay (SPDT – Single Pole Double Throw)
• Maximum Output Voltage: 250V AC / 30V DC
• Maximum Output Current: 2A per channel
• Power Supply: Supplied by the PLC unit
• Isolation: Optical isolation between input and output
• Dimensions: 90 mm x 90 mm x 80 mm (3.54 in x 3.54 in x 3.15 in)
• Weight: Approximately 0.3 kg (0.66 lbs)
• Temperature Range: 0°C to 55°C (32°F to 131°F)
