Mitsubishi

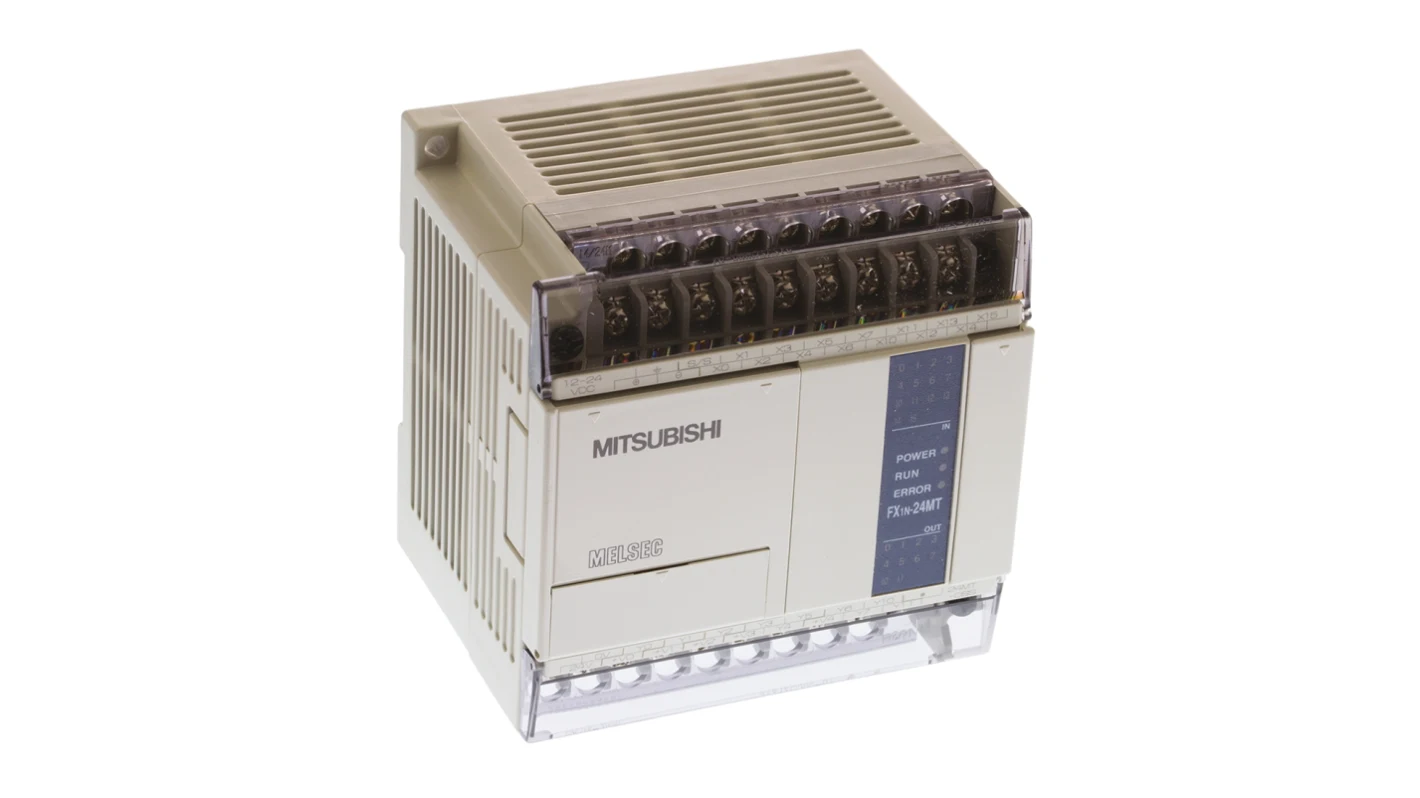

Mitsubishi FX1N-24MT-DSS Programmable Controller FX1N24MTDSS
Mitsubishi FX1N-24MT-DSS Programmable Controller FX1N24MTDSS
Couldn't load pickup availability
Description:
FX1N24MTDSS COMPUTER INTERFACE MODULE 14 INPUTS 10 TRANSISTOR OUTPUTS 24V DC SUPPLY 15 WATT The FX1N-24MTDSS is a versatile and compact programmable logic controller (PLC) from the Mitsubishi FX1N series. Designed for small to medium-sized automation projects, this PLC features 24 digital I/O points, including both inputs and outputs, which offer flexible and reliable control for a variety of industrial applications. Its built-in CPU, memory, and expansion capabilities make it a powerful solution for controlling machinery, processes, and other automated systems.
Technical Specifications:
- Type: Programmable Logic Controller (PLC)
- Number of I/O Points: 24 (14 inputs, 10 outputs)
- Input Type: Digital, Sink/Source selectable
- Output Type: Relay
- Input Voltage Range: 24V DC
- Output Voltage Range: 24V DC
- CPU Type: Built-in CPU
- Memory: 1K words of RAM, 1K words of EEPROM
- Communication Ports: Built-in RS-232C (optional RS-485 with adapter)
- Power Supply: 24V DC
- Operating Temperature Range: 0°C to 55°C
- Mounting Type: DIN Rail
