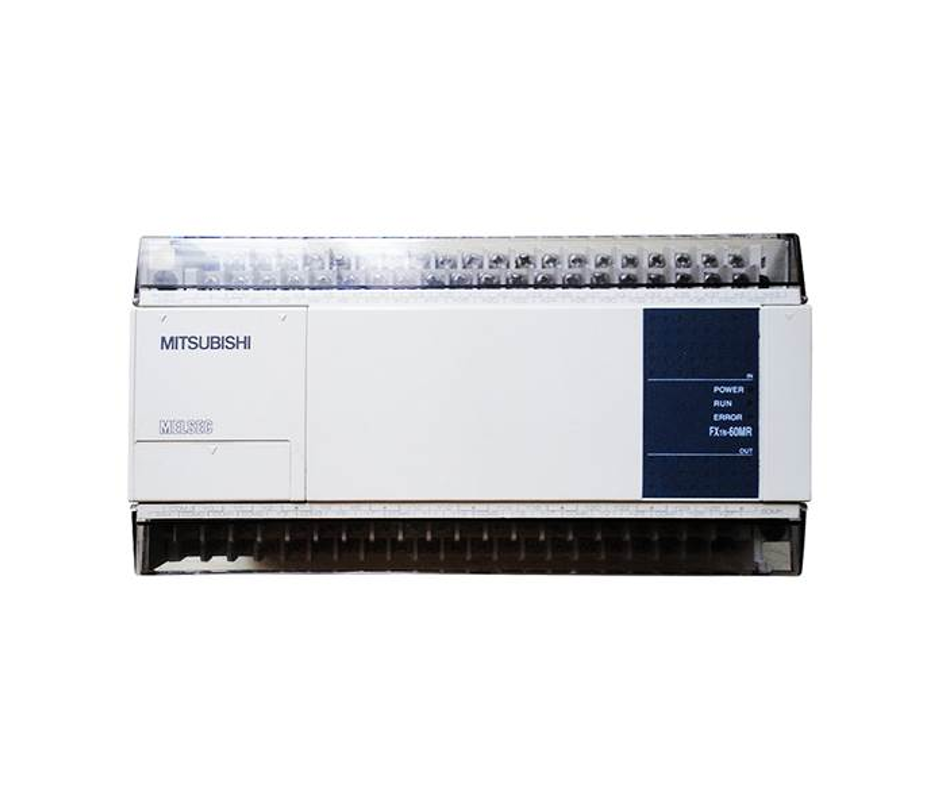

Mitsubishi FX1N-60MR-001 Programmable Logic Controller FX1N60MR001

Description:

The Mitsubishi FX1N-60MR-001 is a programmable logic controller (PLC) base unit from the MELSEC-FX1N series, designed for reliable control of industrial automation systems with integrated digital I/O and relay outputs. Commonly installed in control panels, production lines, conveyor systems, and packaging machinery, it provides stable logic processing and flexible expansion capability. Maintenance teams, system integrators, and OEMs use this PLC for system control, retrofits, and replacement of legacy controllers in applications requiring dependable and cost-effective automation.

Applications:

This Mitsubishi PLC is used in industrial automation environments requiring medium-scale machine control with reliable relay output switching. Typical applications include manufacturing equipment, conveyor and material handling systems, packaging machinery, assembly lines, and general process control systems where consistent logic execution and integration with sensors and actuators are critical for maintaining uptime and efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): FX1N-60MR-001
• Product Type: Programmable Logic Controller (PLC) Base Unit
• Series: MELSEC-FX1N
• Total I/O Points: 60
• Digital Inputs: 36 (24 V DC)
• Digital Outputs: 24 (Relay outputs)
• Output Rating: Up to ~2 A per point (relay)
• Power Supply: 100–240 VAC
• Power Consumption: Approx. 35 W
• Program Memory: Up to 8000 steps
• Programming Language: Ladder logic
• Processing Speed: ~0.08 µs per instruction
• Communication Port: RS-422 (expandable to RS-232/RS-485)
• Expansion Capability: Expandable with FX series modules
• Mounting Type: DIN rail mount
• Operating Temperature: 0 °C to 55 °C
• Dimensions: Approx. 175 × 90 × 75 mm

Common Replacements:

• Mitsubishi FX3U-64MR/ES-A
• Mitsubishi FX3G-60MR/ES-A
• Siemens S7-1200 6ES7214-1AG40-0XB0
