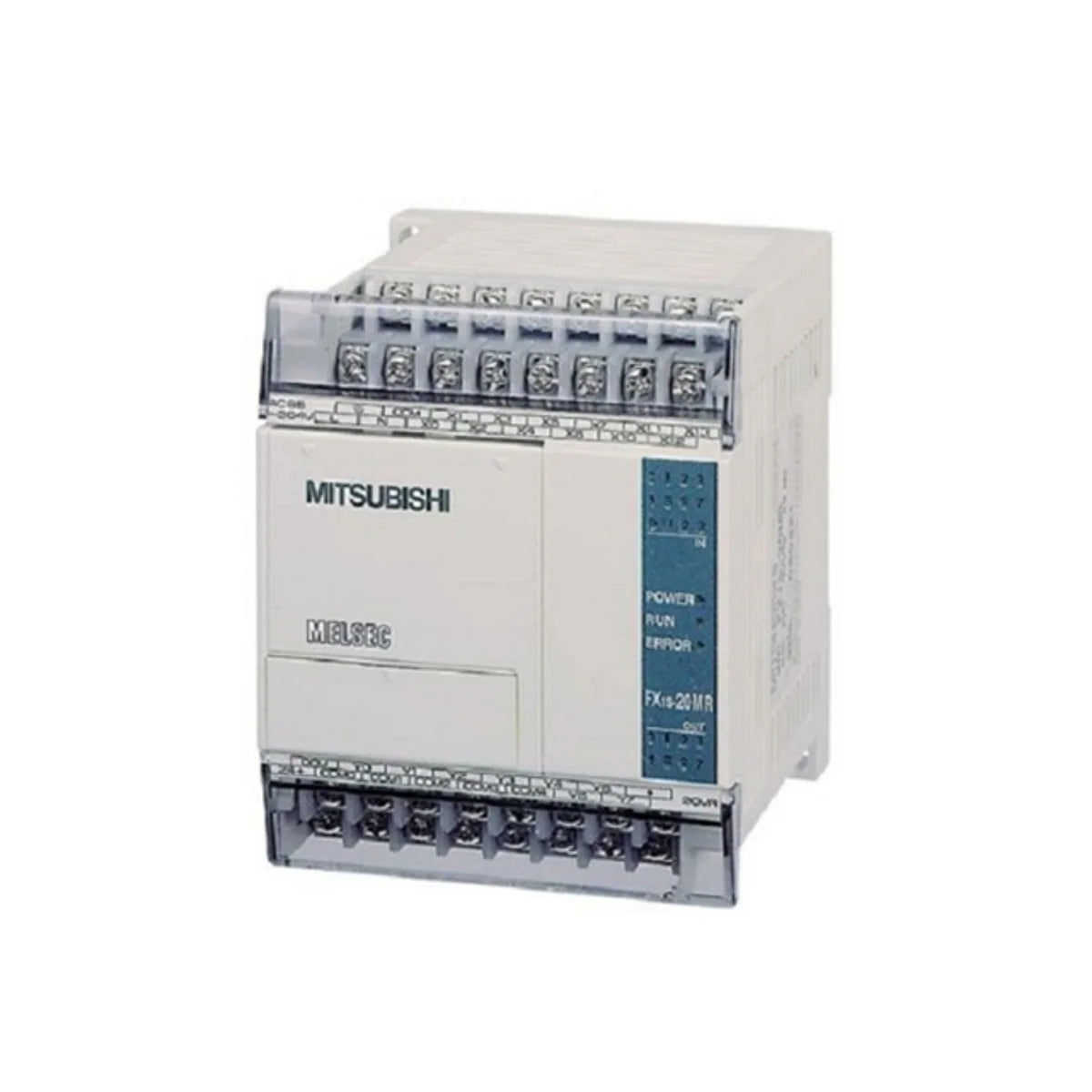

Mitsubishi FX1S-20MT-001 Compact Programmable Logic Controller PLC FX1S20MT001

Description:

The Mitsubishi FX1S-20MT-001 Compact Programmable Logic Controller is used in Mitsubishi MELSEC FX1S series control systems for small machine automation and logic control. Commonly installed in compact automation panels, packaging machines, conveyors, and standalone equipment requiring transistor output PLC control. Maintenance teams, OEMs, and system integrators use this controller for replacement, control panel retrofit, or small automation system expansion to maintain reliable machine operation.

Applications:

The Mitsubishi FX1S-20MT-001 is used in compact machine automation, conveyor control systems, packaging equipment, pump control panels, inspection stations, material handling systems, and small factory automation equipment requiring 20-point PLC control with transistor outputs.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: FX1S-20MT-001
• Product Type: Compact Programmable Logic Controller (PLC)
• Series: MELSEC FX1S Series
• Total I/O Points: 20 I/O
• Digital Inputs: 12 inputs (24V DC)
• Digital Outputs: 8 transistor outputs
• Output Type: Transistor (sink type)
• Output Current: 0.5 A per point
• Power Supply: 24 V DC
• Program Capacity: 2,000 steps
• Processing Speed: Approx. 0.5 µs/logic instruction
• Memory: EEPROM backup
• Mounting: DIN rail / panel mount
• Operating Temperature: 0°C to 55°C
• Application: Compact automation control

Common Replacements:

• Mitsubishi FX3S-20MT/ES
• Mitsubishi FX1N-20MT-001
• Mitsubishi FX3G-24MT
