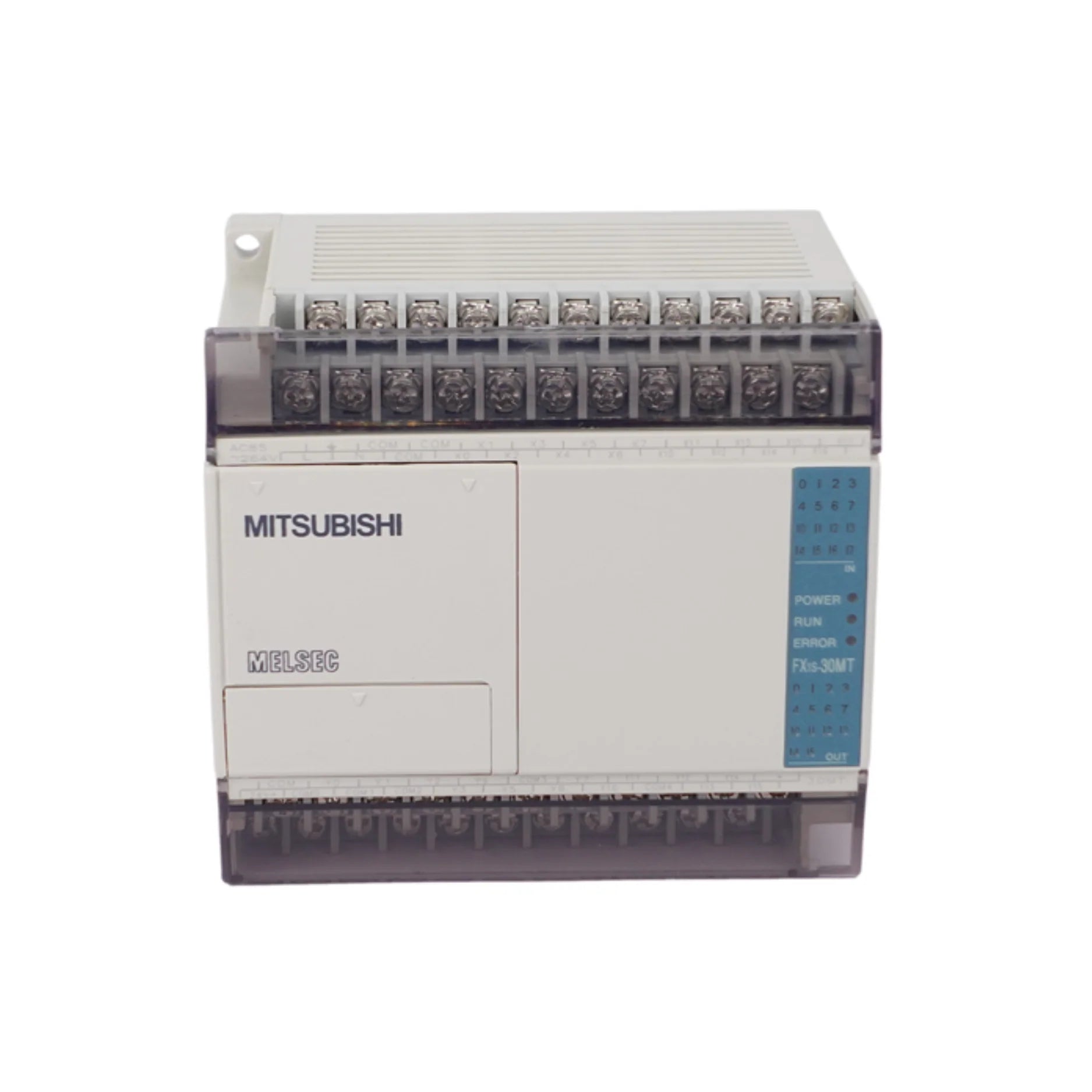

Mitsubishi FX1S-30MT-001 PLC Module Base Unit FX1S Series FX1S30MT001

Description:

The Mitsubishi FX1S-30MT-001 PLC base unit is used in compact industrial automation and control systems. Commonly installed in small machinery, packaging equipment, and standalone machine control panels. Maintenance teams, OEMs, and system integrators use this PLC for machine control, replacement, and retrofit of compact automation systems.

Applications:

The Mitsubishi FX1S-30MT-001 PLC is used in industrial and commercial automation for controlling small to medium-scale machines requiring reliable and compact control solutions. It is widely applied in packaging machines, conveyor systems, food processing equipment, textile machinery, and standalone automation units. With built-in I/O and high-speed processing capability, it enables efficient control of sensors, actuators, and motor-driven systems in environments where space-saving and cost-effective PLC solutions are required.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: FX1S-30MT-001
• Product Type: PLC Base Unit (Compact PLC)
• Series: FX1S Series
• Total I/O Points: 30 I/O (approx. 16 inputs / 14 transistor outputs)
• Output Type: Transistor (high-speed switching)
• Power Supply: 100–240 VAC or 24 V DC (model dependent)
• Program Capacity: Approx. 2,000 steps
• Communication: RS-422 built-in, optional RS-232/RS-485 via expansion board
• Processing Method: Stored program cyclic operation
• Mounting: DIN rail or panel mount
• Features: High-speed counters and pulse outputs for motion control
• Expansion: Limited expansion via communication/function boards

Common Replacements:

• Mitsubishi FX1S-30MR-001
• Mitsubishi FX1N-24MT-001
• Mitsubishi FX3S-30MT
