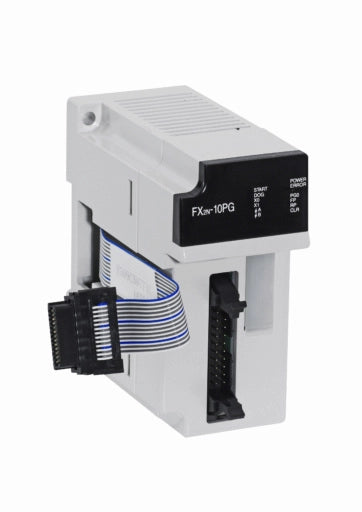

Mitsubishi FX2N-10PG PLC Pulse Generator Block Module FX2N10PG

Description:

The Mitsubishi FX2N-10PG Pulse Generator Module is used in industrial automation systems to generate high-speed pulse outputs for precise positioning and motion control. Commonly installed in CNC equipment, positioning systems, and automated machinery requiring accurate pulse train control. Maintenance teams, OEMs, and system integrators use this part for system expansion, retrofit, and replacement of pulse output modules.

Applications:

The Mitsubishi FX2N-10PG is widely used in positioning applications such as indexing tables, conveyor positioning systems, cutting machines, and small CNC setups where controlled pulse output is required for stepper or servo motor operation. It enables accurate movement control and synchronization in automation processes requiring repeatability and precision.

Technical Specifications:

• Manufacturer Part Number (MPN): FX2N-10PG
• Brand: Mitsubishi Electric
• Product Type: Pulse Generator Module
• Series: MELSEC-FX2N Series
• Output Type: High-speed pulse output
• Number of Channels: 1-channel pulse output
• Control Method: Pulse train output (positioning control)
• Compatible Systems: Mitsubishi FX2N PLC
• Mounting Type: PLC expansion module
• Power Supply: Supplied via PLC base unit
• Interface: Direct connection to FX2N PLC
• Application: Positioning and motion control

Common Replacements:

• Mitsubishi FX3U-10PG
• Mitsubishi FX2N-20GM
• Mitsubishi FX3U-20GM
