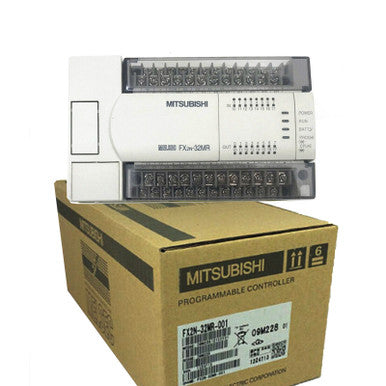

Mitsubishi FX2N-32MR-001 Programmable Logic Controller Module FX2N32MR001

Description:

The Mitsubishi FX2N-32MR-001 is a programmable logic controller (PLC) base unit from the MELSEC-FX2N series, designed for reliable industrial automation control with integrated digital I/O and relay outputs. Commonly installed in control panels, production lines, conveyor systems, and packaging machinery, it provides fast logic processing and flexible expansion capability. Maintenance teams, system integrators, and OEMs use this PLC for system control, retrofits, and replacement of legacy controllers in applications requiring dependable and scalable automation performance.

Applications:

This Mitsubishi PLC is used in industrial automation environments requiring reliable control of small to mid-scale machines. Typical applications include manufacturing equipment, conveyor systems, packaging machinery, assembly lines, and process control systems where consistent logic execution and integration with sensors and actuators are essential for maintaining uptime and operational efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): FX2N-32MR-001
• Product Type: Programmable Logic Controller (PLC) Base Unit
• Series: MELSEC-FX2N
• Total I/O Points: 32 (16 inputs, 16 outputs)
• Input Type: Digital DC (24 V)
• Output Type: Relay outputs
• Output Rating: Up to ~2 A per point (relay)
• Power Supply: 100–240 VAC
• Power Consumption: ~25–40 W
• Program Memory: 8K steps (expandable to 16K)
• Processing Speed: ~0.08 µs per instruction
• Communication Port: RS-422 (expandable to RS-232/RS-485)
• Expansion Capability: Supports FX2N expansion modules (up to ~256 I/O total)
• Mounting Type: DIN rail / panel mount
• Dimensions: Approx. 150 × 90 × 87 mm
• Operating Temperature: 0 °C to 55 °C
• Protection Class: IP10–IP20

Common Replacements:

• Mitsubishi FX3U-32MR/ES-A
• Mitsubishi FX3G-30MR/ES-A
• Siemens S7-1200 6ES7212-1BE40-0XB0
