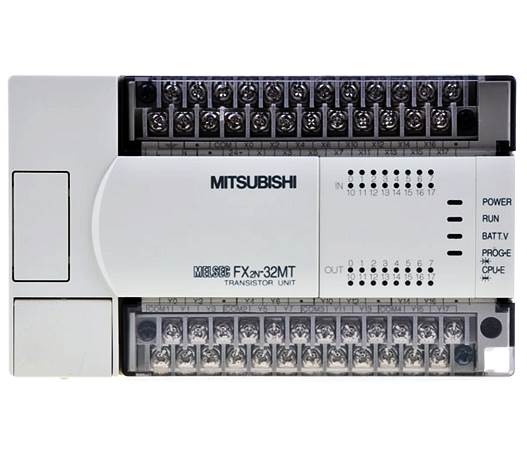

Mitsubishi FX2N-32MT-001 PLC MODULE TRANSISTOR UNIT FX2N32MT001

Description:

FX2N32MT001 CPU INTERFACE 32 POINT 100-240 VAC 40 VA 50/60 HZ OUTPUT: 5-30 VDC 0.3 A-0.5 A. The FX2N-32MT-001 is a compact and efficient programmable logic controller (PLC) expansion module designed to extend the capabilities of the FX2N series PLCs. This module provides 32 additional input and output points, enhancing the control and monitoring capabilities of the base PLC system. It features a user-friendly interface for seamless integration and supports high-speed processing, making it ideal for applications requiring precise and reliable automation. The FX2N-32MT-001 is built for durability and reliability, with a rugged design that ensures stable operation in various industrial environments.

Technical Specifications:

• Model: FX2N-32MT-001
• Type: PLC Expansion Module
• I/O Capacity: 32 points
• Input Type: 16 digital inputs
• Output Type: 16 digital outputs
• Input Voltage Range: 24V DC
• Output Current Rating: 0.5A per point
• Response Time: 1ms for inputs, 5ms for outputs
• Operating Temperature Range: 0°C to 55°C
• Dimensions: 4.7 x 3.9 x 2.5 inches
• Weight: 1.1 lbs
• Mounting Type: Din Rail Mount
• Compatibility: Designed for use with FX2N series PLCs
• Certifications: CE, UL
