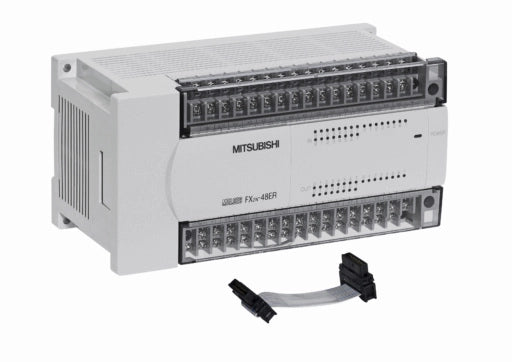

Mitsubishi FX2N-48ER-ES/UL I/O Module FX2N Series Logic Controller PLC FX2N48ERESUL

Description:

The Mitsubishi FX2N‑48ER‑ES/UL is an I/O expansion module for the FX2N series programmable logic controller (PLC), providing 48 points of relay output control to expand system capabilities. Commonly installed in industrial automation systems, control panels, and machinery logic racks, it allows PLCs to directly drive and manage external devices and actuators. Maintenance teams, system integrators, and OEMs use this module for system expansion, upgrades, and replacements in automation environments requiring additional relay output control with UL‑listed compliance.

Applications:

This Mitsubishi I/O module is used in industrial automation environments that require a large number of relay outputs for switching and controlling external devices. Typical applications include conveyor systems, manufacturing automation, packaging equipment, process machinery, and material handling systems where multiple actuators, indicators, and control devices must be driven reliably from a PLC.

Technical Specifications:

• Manufacturer Part Number (MPN): FX2N‑48ER‑ES/UL
• Product Type: PLC I/O Expansion Module (Relay Outputs)
• Compatible PLC Platform: Mitsubishi FX2N Series
• Total Output Points: 48 relay outputs
• Output Type: Relay (Form A/CO contacts)
• Rated Output Voltage: Up to 250 VAC / 30 VDC (model dependent)
• Output Current Rating: Typically 2 A per point (model dependent)
• Input/Output Isolation: Optical or safe isolation from PLC logic
• Communication Interface: Backplane bus connection to host PLC
• Power Supply: Supplied via host PLC power system
• Mounting Type: DIN rail / PLC rack mount
• Operating Temperature: 0 °C to 55 °C
• Storage Temperature: ‑25 °C to 75 °C
• Protection Class: IP20
• Certification: UL, CE

Common Replacements:

• Mitsubishi FX3U‑32ER/ES‑A
• Siemens SM 322‑2 (model dependent)
• Allen‑Bradley 1769‑OB32 (relay output module)
