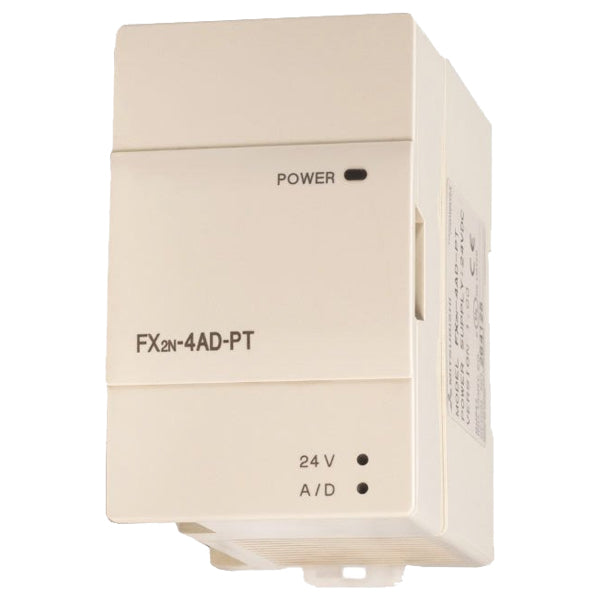

Mitsubishi FX2N-4AD-PT PLC Analog Input Temperature Module Logic Controller FX2N4ADPT

Description:

FX2N4ADPT I/O MODULE 5 VDC/24 VDC 4 ANALOG INPUTS 12 BIT The FX2N-4AD-PT is a high-precision analog input module from Mitsubishi Electric, designed to expand the capabilities of the FX2N series PLCs. It provides 4 analog inputs with thermocouple (PT) signal compatibility, making it ideal for applications that require accurate temperature measurement and control. This module is engineered to deliver reliable performance in various automation and control systems, offering high-resolution data acquisition and flexible integration with industrial processes.

Technical Specifications:

• Model: FX2N-4AD-PT
• Module type: Analog input module
• Number of inputs: 4 channels
• Input type: Thermocouple (Type J, K, T, E, R, S, B, N)
• Input range: -200°C to 1,850°C (depending on thermocouple type)
• Resolution: 12-bit
• Accuracy: ±0.5°C (typical)
• Sampling rate: 10 ms (per channel)
• Power consumption: 1.0 W
• Dimensions: 90 mm x 90 mm x 75 mm
• Weight: 0.3 kg
• Operating temperature range: 0°C to 55°C
• Mounting type: DIN rail
