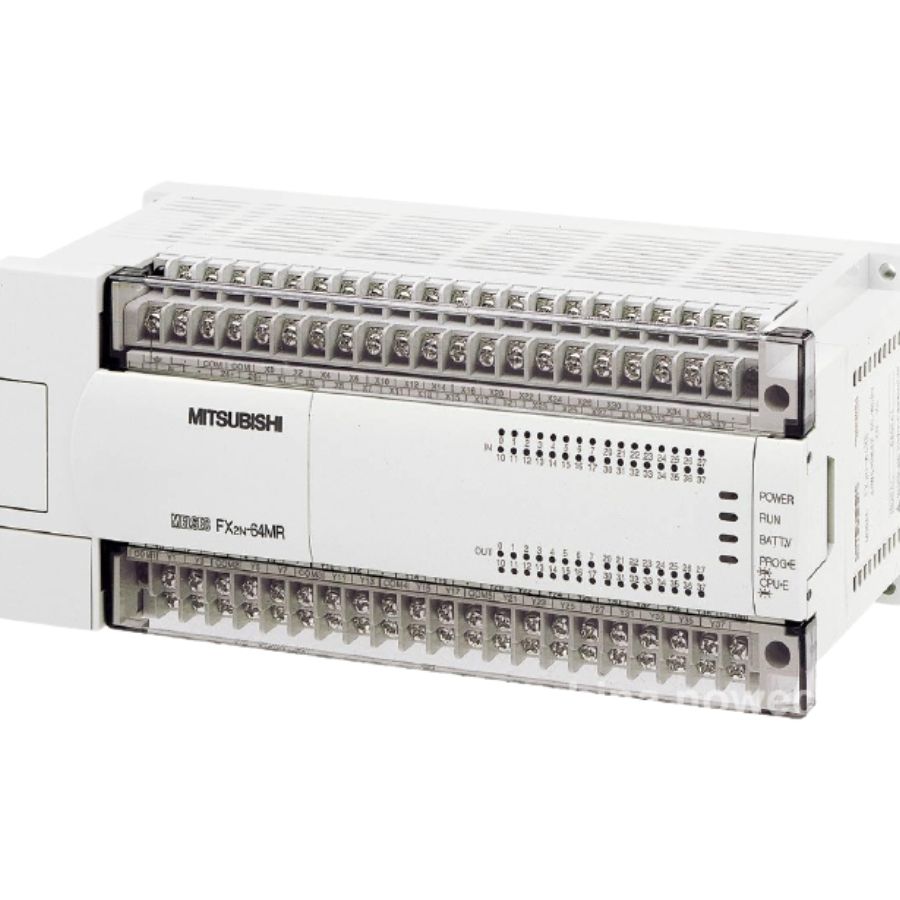

Mitsubishi FX2N-64MR PLC Module FX2N64MR

Description:

The Mitsubishi FX2N-64MR is a programmable logic controller (PLC) base unit from the MELSEC-FX2N series, designed for reliable industrial automation control with integrated digital I/O. Commonly installed in production lines, conveyor systems, packaging equipment, and machine control panels, it provides high-speed logic processing with flexible expansion capability. Maintenance teams, system integrators, and OEMs use this PLC for system control, upgrades, and replacements in applications requiring dependable performance and scalable I/O architecture.

Applications:

This Mitsubishi PLC is used in industrial automation environments requiring reliable control of medium-scale machines and processes. Typical applications include manufacturing automation, conveyor and material handling systems, packaging machinery, assembly lines, and process control systems where consistent logic execution and integration with sensors and actuators are essential for maintaining uptime and efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): FX2N-64MR
• Product Type: Programmable Logic Controller (PLC) Base Unit
• Series: MELSEC-FX2N
• Total I/O Points: 64 (32 inputs, 32 outputs)
• Input Type: Digital DC (24 V)
• Output Type: Relay outputs (approx. 2 A per point)
• Power Supply: 100–240 VAC (model dependent variants available)
• Program Memory: Up to ~8K–16K steps (model/config dependent)
• Processing Speed: ~0.08 µs basic instruction
• Communication Port: RS-422 programming port (expandable to RS-232/RS-485)
• Expansion Capability: Up to ~256 I/O points with expansion modules
• High-Speed Counter: Up to 60 kHz (model dependent)
• Mounting Type: DIN rail mount
• Operating Temperature: 0 °C to 55 °C
• Protection Class: IP10–IP20

Common Replacements:

• Mitsubishi FX3U-64MR/ES-A
• Mitsubishi FX3G-60MR/ES-A
• Siemens S7-1200 6ES7214-1AG40-0XB0
