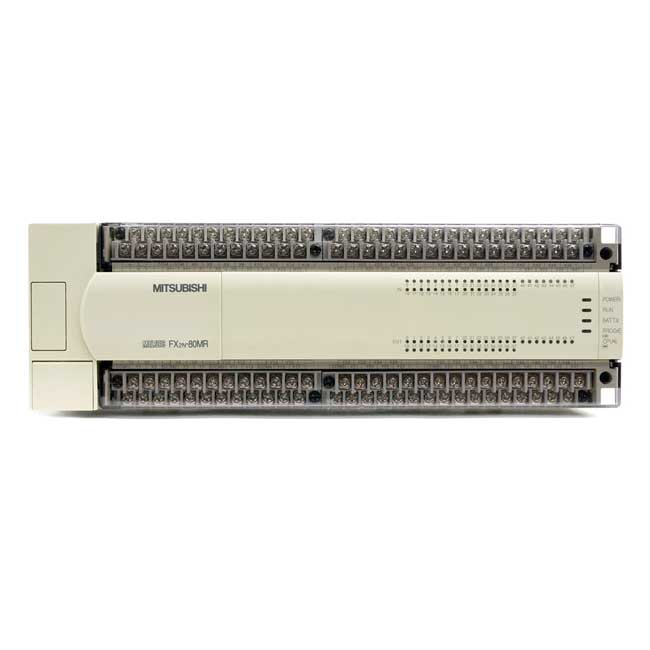

Mitsubishi FX2N-80MR-ES/UL Programmable Logic Controller FX2N80MRES/UL

Description:

FX2N80MRESUL DISCONTINUED BY MANUFACTURER PLC MODULE BASE UNIT 40 IN 40 OUT 2 AMP 100-240 VAC The FX2N-80MR-ES/UL is a versatile and compact programmable logic controller (PLC) from Mitsubishi's FX2N series, designed to deliver reliable and efficient control for a variety of automation applications. Featuring 80 input/output points, this PLC provides a robust solution for controlling complex machinery and processes with ease. The FX2N-80MR-ES/UL offers a wide range of I/O configurations, advanced programming capabilities, and built-in communication ports, making it suitable for diverse industrial environments. Its user-friendly interface and modular design facilitate easy integration and expansion, ensuring flexibility and scalability in automation systems.

Technical Specifications:

• Type: Programmable Logic Controller (PLC)
• Model: FX2N-80MR-ES/UL
• I/O Points: 80 (40 inputs and 40 outputs)
• Input Type: Digital (24V DC)
• Output Type: Relay (24V DC, 2A per output)
• CPU: 16-bit
• Memory: 8 KB RAM (expandable)
• Programming Method: Ladder Diagram, Structured Text
• Communication Ports: RS-232C, RS-485 (Modbus protocol)
• Power Supply: 24V DC
• Operating Temperature Range: 0°C to 55°C
• Dimensions (LxWxH): 90 mm x 120 mm x 85 mm
• Weight: Approx. 0.9 kg
• Mounting Type: DIN Rail Mountable
