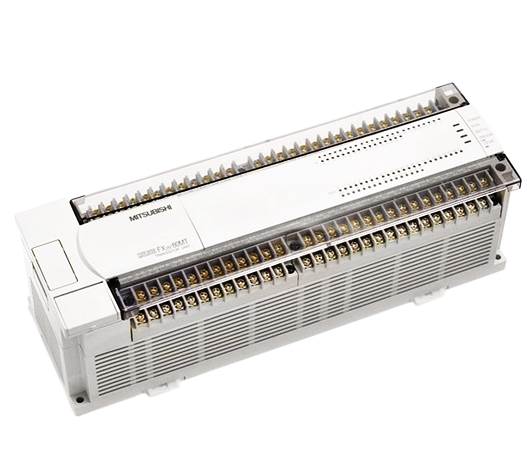

Mitsubishi FX2N-80MT-001 Programmable Controller FX2N80MT001

Description:

FX2N80MT001 DISCONTINUED BY MANUFACTURER I/O MODULE 40 INPUT / 40 OUTPUT The FX2N-80MT001 is a high-density I/O module designed for Mitsubishi's FX2N PLC series, providing an efficient solution for expanding the control capabilities of automation systems. This module features 80 points of discrete I/O, comprising 64 digital inputs and 16 relay outputs, in a single compact unit. It is engineered for reliability and ease of integration, making it suitable for applications requiring extensive I/O expansion. The FX2N-80MT001 supports a wide range of industrial environments with its robust design and operational flexibility, ensuring seamless integration with existing FX2N PLC systems.

Technical Specifications:

• Model: FX2N-80MT001
• I/O Configuration:
• Inputs: 64 digital inputs (24V DC)
• Outputs: 16 relay outputs (AC 250V, DC 30V)
• Power Supply: Supplied by the PLC system
• Isolation: 1500V AC (between I/O and PLC)
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -25°C to 65°C
• Dimensions (W x H x D): 180 x 90 x 80 mm
• Weight: Approximately 0.9 kg
• Mounting Type: DIN rail mount
