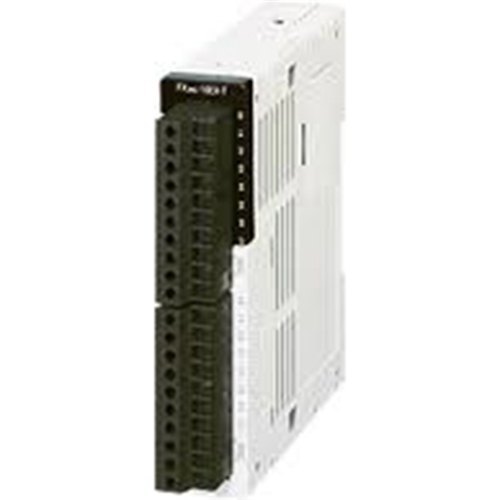

Mitsubishi FX2NC-16EX-T 16In/0Out Programmable Logic Controller Module FX2NC16EXT

Description:

The FX2NC-16EX-T is a versatile and compact expansion unit from Mitsubishi Electric, designed to extend the capabilities of the FX2N series PLCs. With 16 additional digital I/O points, this module provides a straightforward solution for expanding input and output capacity in automation systems. Its robust design ensures reliable operation and easy integration with existing FX2N controllers, making it an ideal choice for enhancing system flexibility and functionality in various industrial applications.

Technical Specifications:

• Model: FX2NC-16EX-T
• Input type: 8 digital inputs (24 V DC)
• Output type: 8 digital outputs (24 V DC, transistor)
• Input response time: 1 ms (OFF to ON) / 1 ms (ON to OFF)
• Output response time: 0.5 ms (ON to OFF) / 0.5 ms (OFF to ON)
• Input current: 7 mA
• Output current: 0.5 A per point
• Isolation: Photocoupler isolation for inputs and outputs
• Power consumption: 4 W
• Dimensions: 90 mm x 90 mm x 90 mm
• Weight: 0.4 kg
• Operating temperature range: 0°C to 55°C
• Mounting type: DIN rail
