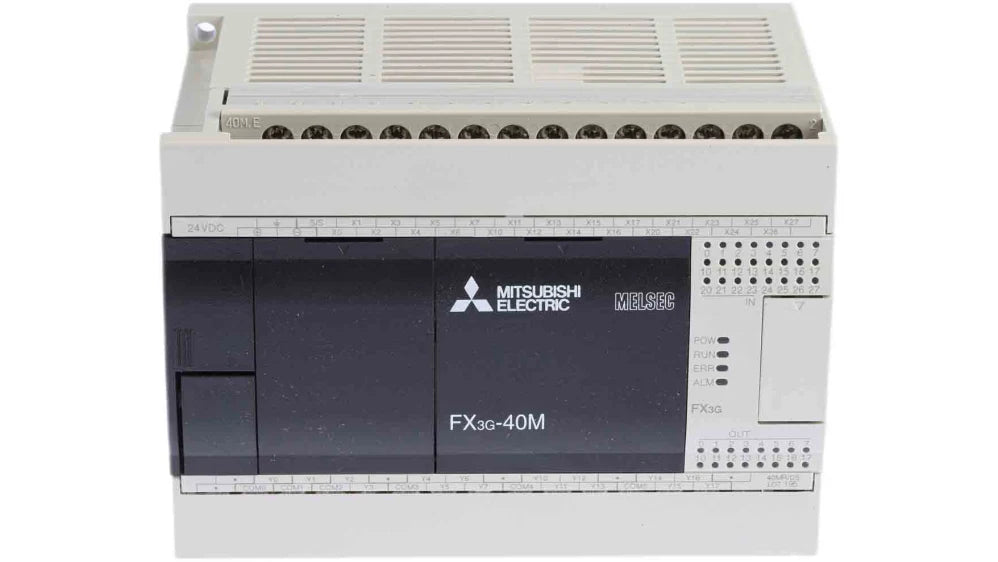

Mitsubishi FX3G-40MR/DS SINK/SOURCE RELAY FX3G40MR/DS

Description:

FX3G40MRDS DC BASE UNIT 24 VDC SINK/SOURCE RELAY 24 INPUTS 16 OUTPUTS The FX3G-40MR/DS is a versatile and compact programmable logic controller (PLC) from Mitsubishi’s FX3G series, designed for efficient automation in small to mid-sized applications. It features 24 discrete inputs and 16 relay outputs, providing a balanced combination of control and monitoring capabilities. The unit supports high-speed processing and offers enhanced features such as advanced timing and counting functions. Its modular design allows for easy expansion with additional I/O modules, making it adaptable to various industrial needs.

Technical Specifications:

• Input Points: 24 discrete (24V DC)
• Output Points: 16 relay outputs
• Power Supply: 24V DC
• Program Memory: 32 KB
• I/O Expansion: Supported via expansion modules
• Communication: Built-in RS-422 port for communication
• Operating Temperature: 0 to 55°C
• Dimensions: 90 x 90 x 60 mm
