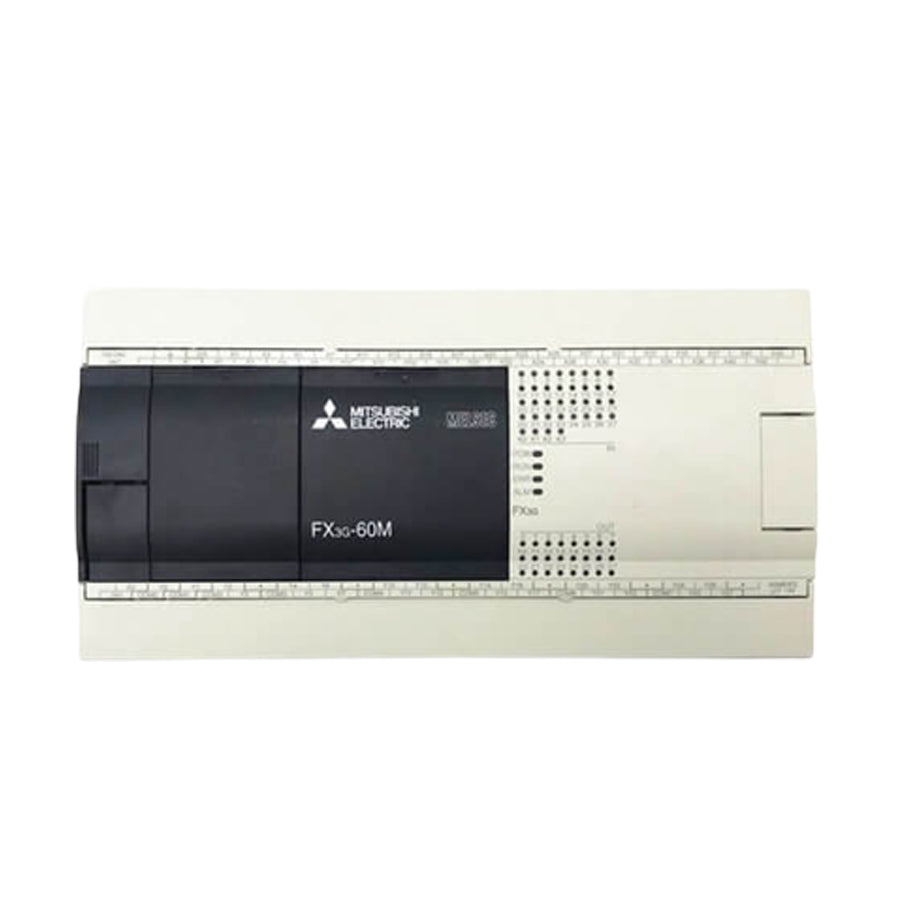

Mitsubishi FX3G-60MT/ES-A Programmable Logic Controller CC-Link Remote I/O FX3G60MT/ESA

Description:

The FX3G-60MT/ES-A is a versatile and compact programmable logic controller (PLC) from Mitsubishi Electric, designed to deliver efficient and reliable control in a wide range of industrial automation applications. With its built-in 60 I/O points and expansion capabilities, this PLC provides a flexible solution for controlling machinery and processes. Its robust performance and ease of integration make it ideal for both simple and complex automation tasks.

Technical Specifications:

• Type: Programmable Logic Controller (PLC)
• Model: FX3G-60MT/ES-A
• I/O Configuration: 60 total points (24 inputs, 36 outputs)
• Input Type: Digital (24 VDC)
• Output Type: Relay (SPDT) and Transistor (NPN/PNP)
• Programming Language: Ladder logic
• Communication: Built-in RS-422/485
• Expansion: Supports additional expansion modules
• Operating Temperature: 0°C to 55°C
• Mounting: DIN rail
• Dimensions: 90 x 90 x 90 mm (W x H x D)
