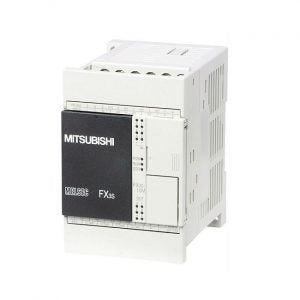

Mitsubishi FX3S-20MR/DS Programmable Logic Controller FX3S20MR/DS

Description:

FX3S20MRDS PLC BASE UNIT FOR USE WITH FX3 SERIES 24 VDC SUPPLY RELAY OUTPUT 12 INTEGRATED DIGITAL INPUTS 8 INTEGRATED DIGITAL OUTPUTS 16K STEPS PROGRAM MEMORY IP10 DIN RAIL MOUNTABLE The Mitsubishi FX3S-20MR/DS is a compact and versatile programmable logic controller (PLC) unit from the FX3S series, designed for small to medium-sized automation applications. This model features a built-in CPU and a total of 20 I/O points, including 12 digital inputs and 8 digital outputs. The FX3S-20MR/DS provides reliable and efficient control, with an emphasis on ease of use and flexibility. It is suitable for applications requiring compact control solutions with straightforward programming and integration capabilities, making it ideal for use in various industrial and commercial environments.

Technical Specifications:

• Model: FX3S-20MR/DS
• Type: PLC Unit
• CPU Type: Built-in CPU
• I/O Configuration:
• Inputs: 12 x Digital (24V DC)
• Outputs: 8 x Digital (Relay)
• Program Capacity: 8,000 steps
• Data Memory Capacity: 4 KB
• Communication Ports:
• 1 x RS-422/485: For communication with other devices and programming
• Optional communication modules: For additional connectivity options
• Power Supply Voltage: 24V DC
• Operating Temperature Range: 0°C to 55°C
• Dimensions: Approximately 90 mm x 90 mm x 90 mm (dimensions may vary slightly)
• Weight: Approximately 0.5 kg
• Features: Compact design, built-in CPU, flexible I/O options, user-friendly programming
• Compliance: CE, RoHS
