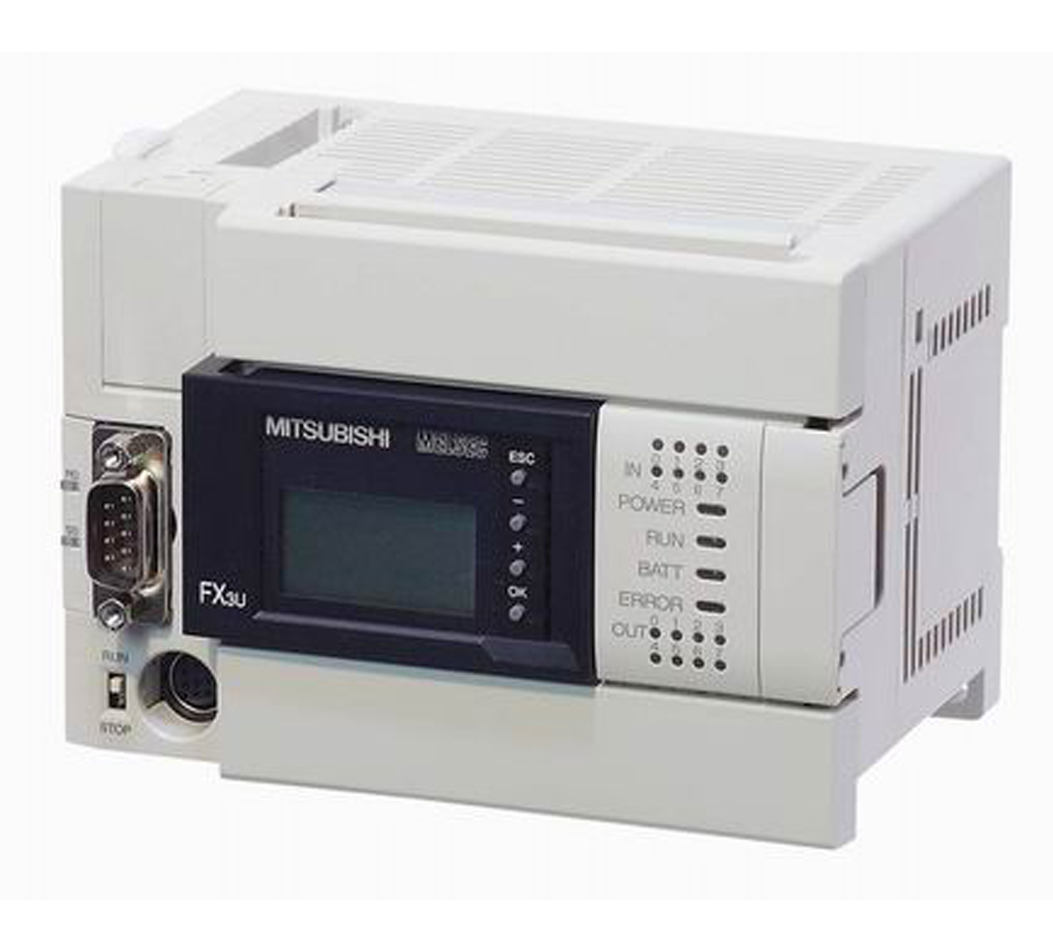

Mitsubishi FX3U-16MT/ES-A Programmable Logic Controller Module Unit FX3U16MT/ESA

Description:

The Mitsubishi FX3U-16MT/ES-A Programmable Logic Controller Module is used in Mitsubishi MELSEC FX3U series PLC systems for compact machine automation and high-speed transistor output control. Commonly installed in packaging machines, conveyor systems, assembly equipment, and factory automation panels requiring reliable PLC control with pulse output capability. Maintenance teams, OEMs, and system integrators use this controller for replacement, control panel retrofit, or automation system expansion to maintain stable machine operation.

Applications:

The Mitsubishi FX3U-16MT/ES-A is used in compact machine automation, positioning systems, conveyor control, packaging and labeling machines, pick-and-place equipment, material handling systems, and factory automation machinery requiring 16-point PLC control with transistor outputs for motion-related applications.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: FX3U-16MT/ES-A
• Product Type: Programmable Logic Controller (PLC)
• Series: MELSEC FX3U Series
• Total I/O Points: 16 I/O
• Digital Inputs: 8 inputs (24V DC)
• Digital Outputs: 8 transistor outputs
• Output Type: Transistor (sink)
• Power Supply: 100–240 VAC
• High-Speed Output: Pulse output for positioning control
• High-Speed Counter: Built-in high-speed inputs
• Program Capacity: 64K steps (FX3U class)
• Communication: RS-422 built-in, expansion adapters supported
• Mounting: DIN rail / panel mount
• Operating Temperature: 0°C to 55°C
• Application: Compact machine automation control

Common Replacements:

• Mitsubishi FX3U-16MR/ES-A
• Mitsubishi FX3G-14MT/ES-A
• Mitsubishi FX5U-16MT
