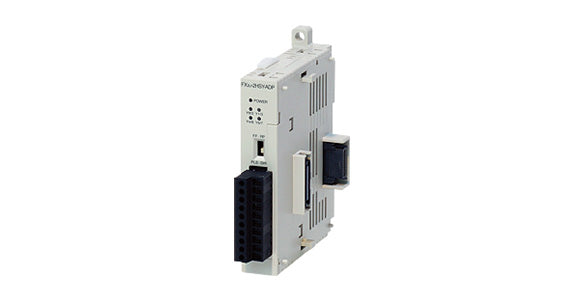

Mitsubishi FX3U-2HSY-ADP Programmable Logic Communication Expansion I/O Module FX3U2HSYADP

Description:

The Mitsubishi FX3U-2HSY-ADP Communication Expansion I/O Module is used in industrial automation systems to provide high-speed pulse output and positioning control for Mitsubishi FX3U PLC systems. Commonly installed in packaging machines, conveyor systems, and automated equipment requiring precise pulse control for servo and stepper motors. Maintenance teams, OEMs, and system integrators use this part for system expansion, retrofit, and upgrading motion control capabilities.

Applications:

The Mitsubishi FX3U-2HSY-ADP module is widely used in industrial environments where high-speed pulse output and positioning are required. It is commonly applied in indexing systems, labeling machines, cutting machines, pick-and-place equipment, and small motion control systems where accurate pulse generation is essential for driving servo or stepper motors.

Technical Specifications:

• Manufacturer Part Number (MPN): FX3U-2HSY-ADP
• Product Type: High-Speed Pulse Output / Communication Expansion Module
• Series: MELSEC-FX3U
• Number of Channels: 2 channels
• Output Type: High-speed pulse output (transistor)
• Pulse Output Frequency: Up to 200 kHz
• Control Functions: Positioning, speed control, pulse/direction control
• Compatible Motors: Servo motors and stepper motors
• Mounting: Side-mounted adapter module
• Power Supply: Supplied via PLC base unit
• Compatibility: Mitsubishi FX3U PLC series

Common Replacements:

• Mitsubishi FX2N-2HSY
• Mitsubishi FX3G-2HSY-ADP
• Mitsubishi FX3U-1PG
