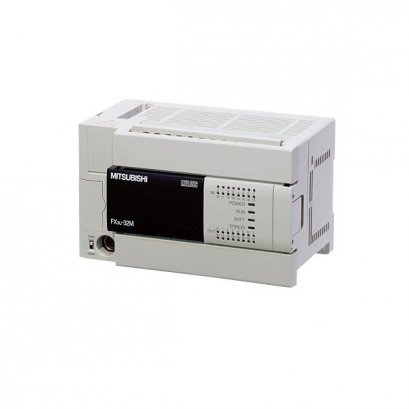

Mitsubishi FX3U-32MT/ES-A Programmable Logic Controller FX3U32MT/ESA

Description:

FX3U32MTESA LOGIC MODULE 32 I/O THIRD GENERATION POWER SUPPLY: 100 -240 VAC MEMORY PROGRAM: 64,000 STEPS The FX3U-32MT/ES-A is a versatile and high-performance programmable logic controller (PLC) from Mitsubishi's FX3U series, designed for efficient control in industrial automation systems. This model integrates 32 discrete I/O points, with 16 digital inputs and 16 transistor outputs, offering a reliable and compact solution for a range of automation tasks. It features advanced processing capabilities, built-in EEPROM memory for program storage, and a user-friendly interface. The FX3U-32MT/ES-A's robust design and compact size make it ideal for applications requiring space-saving and reliable control in diverse industrial environments.

Technical Specifications:

• Model: FX3U-32MT/ES-A
• I/O Configuration:
• Inputs: 16 digital inputs (24V DC)
• Outputs: 16 transistor outputs (24V DC, 0.5A per point)
• Power Supply: 24V DC (±10%)
• Program Capacity: 16K steps
• Memory Type: EEPROM
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -25°C to 65°C
• Dimensions (W x H x D): 130 x 90 x 90 mm
• Weight: Approximately 0.8 kg
• Mounting Type: DIN rail mount
