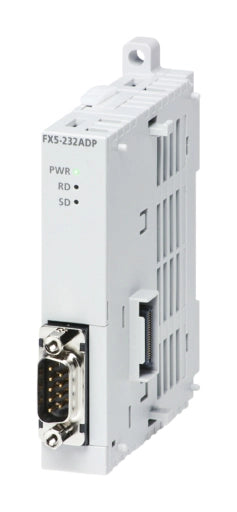

Mitsubishi FX5-232ADP Communication Module FX5232ADP

Description:

The Mitsubishi FX5-232ADP Communication Module is used in Mitsubishi MELSEC iQ-F FX5 series PLC systems to provide RS-232 serial communication interface expansion. Commonly installed in machine control panels, packaging equipment, barcode systems, and industrial automation lines requiring serial device connectivity. Maintenance teams, OEMs, and system integrators use this module for communication expansion, device integration, or RS-232 retrofit to connect HMIs, scanners, and external controllers.

Applications:

The Mitsubishi FX5-232ADP Used in MELSEC iQ-F FX5 PLC systems for RS-232 communication with HMIs, barcode readers, printers, weighing scales, serial sensors, CNC interfaces, SCADA gateways, and industrial equipment requiring point-to-point serial communication in factory automation environments.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: FX5-232ADP
• Product Type: RS-232 Communication Module
• Series: MELSEC iQ-F FX5 Series
• Communication Interface: RS-232C
• Transmission Method: Asynchronous serial communication
• Connection Type: Mini-DIN / serial connector (model dependent)
• Mounting: Left-side expansion adapter for FX5 CPU
• Compatible PLC: FX5U / FX5UC series
• Data Bits: 7/8 bits selectable
• Stop Bits: 1/2 bits selectable
• Parity: None / Even / Odd
• Baud Rate: Configurable serial communication speed
• Isolation: Built-in communication isolation
• Application: Serial device integration

Common Replacements:

• Mitsubishi FX3U-232-BD
• Mitsubishi FX5-485ADP
• Mitsubishi FX3U-232ADP
