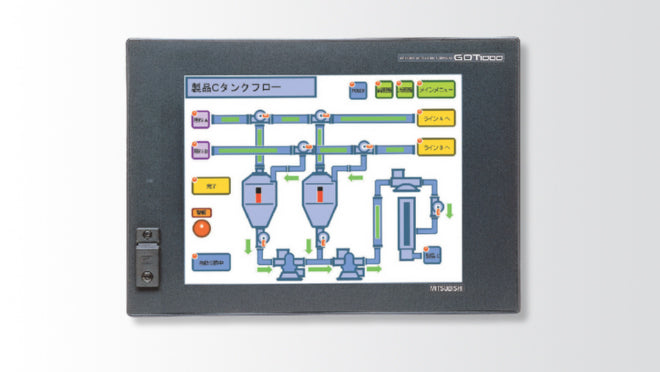

Mitsubishi GOT1000 GT1685M-STBA Graphic Operation Panel PLC

Description:

The Mitsubishi GT1685M-STBA Graphic Operation Panel is used in GOT1000 HMI systems for operator control and visualization in industrial automation. Commonly installed in control panels, manufacturing lines, CNC machines, and process automation systems. Maintenance teams, OEMs, and system integrators use this HMI for system monitoring, operation control, retrofit upgrades, and replacement of legacy operator interfaces.

Applications:

The Mitsubishi GT1685M-STBA graphic operation panel is used in industrial environments such as manufacturing plants, packaging systems, energy management, and machine automation to provide real-time visualization, operator interaction, alarm monitoring, and process control through an intuitive touchscreen interface connected to PLCs and automation devices.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: GT1685M-STBA
• Product Type: Graphic Operation Panel (HMI Touch Panel)
• Series: GOT1000 (GT16 series)
• Display Size: 12.1 inches
• Display Type: TFT color LCD
• Resolution: 800 × 600 pixels (SVGA)
• Display Colors: 65,536 colors
• Touch Type: Analog resistive touchscreen
• Memory: 15 MB built-in flash (expandable)
• Interfaces: Ethernet, RS-232, RS-422/485, USB, CF card
• Power Supply: AC 100–240 V or 24 V DC (model dependent)
• Mounting: Panel mount
• Protection Rating: IP67 (front), IP2X (rear)
• Operating Life: Backlight up to ~60,000 hours
• Compliance: CE, UL, industrial standards

Common Replacements:

• Mitsubishi GT2712-STBA
• Mitsubishi GT2512-STBA
• Mitsubishi GT1685M-STBD
