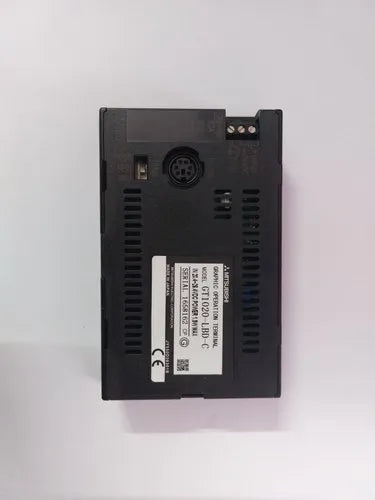

Mitsubishi GT1020-LBD-C 3.7" HMI Operator Touch Screen Panel Display GT1020LBDC

Description:

The Mitsubishi GT1020-LBD-C HMI operator touch screen panel is used in industrial PLC control and monitoring systems. Commonly installed in factory automation lines, control panels, packaging machines, and process control systems. Maintenance teams, OEMs, and system integrators use this HMI for system operation, retrofit, replacement, and interface upgrades.

Applications:

The Mitsubishi GT1020-LBD-C HMI is used in industrial automation environments to provide real-time visualization and operator control of PLC-driven systems. It is widely applied in manufacturing lines, packaging equipment, material handling systems, and process industries where operators require clear status monitoring, alarm management, and parameter input. Its compact design and reliable communication make it suitable for integration into control panels and machine interfaces requiring efficient human-machine interaction.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: GT1020-LBD-C
• Product Type: HMI Operator Interface Panel (GOT1000 series)
• Display Size: 3.7 inch STN monochrome LCD
• Resolution: 160 × 64 pixels
• Display Type: Monochrome with 3-color LED backlight (green/red/orange)
• Touch Panel: Resistive touch (up to 50 touch keys per screen)
• Communication Interface: RS-422 / RS-232
• Power Supply: 24 V DC
• Memory: Approx. 512 KB flash memory
• Protection Rating: IP67 front panel (industrial environment)
• Mounting: Panel mount
• Operating Temperature: Approx. 0°C to 50°C

Common Replacements:

• Mitsubishi GT1020-LBD
• Mitsubishi GT1030-LBD-C
• Mitsubishi GT1020-LBL-C
