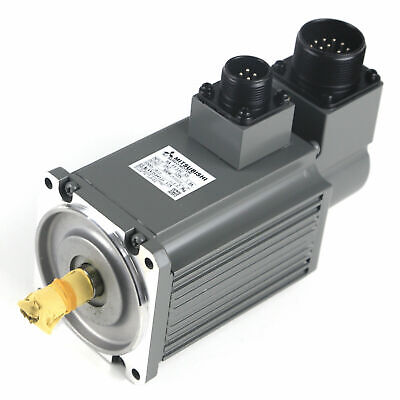

Mitsubishi HA-FF33C-S5 Servo Motor HAFF33CS5

Description:

The HA-FF33C-S5 is a high-performance AC servo motor from Mitsubishi, designed to provide precise motion control and reliable operation for various industrial automation applications. This motor is part of the HA series and is well-suited for tasks requiring high torque and smooth, consistent performance. With its advanced feedback system and robust construction, the HA-FF33C-S5 ensures efficient operation in demanding environments, such as robotics, CNC machines, and automated production lines. Its compact and durable design allows for easy integration and long-term reliability in a wide range of automation tasks.

Technical Specifications:

• Type: AC Servo Motor
• Model: HA-FF33C-S5
• Rated Power: 0.75 kW
• Rated Voltage: 200-230V AC
• Rated Current: 3.4 A
• Rated Speed: 3000 RPM
• Torque: 2.4 Nm (Nominal)
• Feedback Type: Incremental Encoder
• Insulation Class: Class F
• Protection Class: IP65 (Shaft and body)
• Operating Temperature Range: 0°C to 40°C
• Dimensions (LxWxH): 130 mm x 130 mm x 270 mm
• Weight: Approx. 4.0 kg
• Mounting Type: Flange Mount
