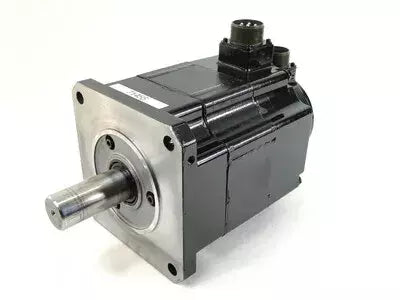

Mitsubishi HA103NC-S PLC AC Servo Motor HA103NCS

Description:

The Mitsubishi HA103NC‑S is an AC servo motor designed for precise motion control in industrial automation systems. Commonly installed in CNC machines, robotic systems, automated conveyors, and packaging equipment, it delivers reliable torque, accurate positioning, and responsive speed control for demanding applications. Maintenance teams, system integrators, and OEMs use this servo motor for system upgrades, replacements, and new automation builds where consistent motion performance and precision control are required.

Applications:

This Mitsubishi AC servo motor is used in industrial environments requiring dependable motion control and high positional accuracy. Typical applications include CNC machining centers, robotic arms, automated assembly lines, conveyor systems, packaging machinery, and material handling equipment where precise position feedback, smooth speed transitions, and consistent torque performance are critical for maintaining operational efficiency and product quality.

Technical Specifications:

• Manufacturer Part Number (MPN): HA103NC‑S
• Product Type: AC Servo Motor
• Rated Power: 1.0 kW (1000 W)
• Rated Voltage: 200–230 VAC
• Rated Current: Approx. 6–7 A
• Rated Torque: Approx. 3.18 Nm
• Rated Speed: Approx. 3000 RPM
• Maximum Speed: Approx. 4500 RPM
• Feedback Type: Integrated encoder feedback
• Mounting Type: Flange mount
• Operating Temperature: ‑10°C to 40°C
• Storage Temperature: ‑20°C to 60°C
• Protection Class: IP65 (motor)
• Cooling Method: Forced air or self‑ventilated

Common Replacements:

• Mitsubishi HA103NC‑A
• Yaskawa SGM7J‑10A
• Panasonic MINAS A5 1 kW
