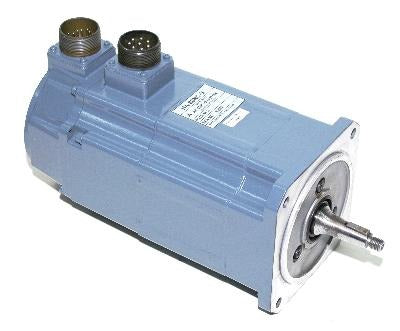

Mitsubishi HA80NC-S Servo Motor HA80NCS

Description:

The Mitsubishi HA80NC‑S is an AC servo motor designed for precise motion control in industrial automation systems. Commonly installed in CNC machines, robotic systems, packaging equipment, and automated assembly lines, it delivers reliable torque, high responsiveness, and accurate positioning. Maintenance teams, system integrators, and OEMs use this servo motor for system upgrades, replacements, and new automation builds where robust motion performance and precise control are required.

Applications:

This Mitsubishi AC servo motor is used in industrial environments that require accurate motion control, high torque, and stable performance. Typical applications include CNC machining centers, robotic arms, automated conveyors, packaging systems, and material handling equipment where precise positioning, repeatable motion, and smooth acceleration/deceleration are essential for maintaining operational efficiency and product quality.

Technical Specifications:

• Manufacturer Part Number (MPN): HA80NC‑S
• Product Type: AC Servo Motor
• Rated Power: 0.8 kW (800 W)
• Rated Voltage: 200–230 VAC
• Rated Current: Approx. 4.5 A
• Rated Speed: Approx. 3000 RPM
• Rated Torque: Approx. 2.5 Nm
• Maximum Speed: Approx. 4000 RPM
• Feedback Type: Encoder feedback (integrated)
• Mounting Type: Flange mount
• Operating Temperature: ‑10°C to 40°C
• Storage Temperature: ‑20°C to 60°C
• Protection Class: IP65 (motor)

Common Replacements:

• Mitsubishi HA80NC‑A
• Yaskawa SGM7J‑08A
• Panasonic MINAS A5 800W
