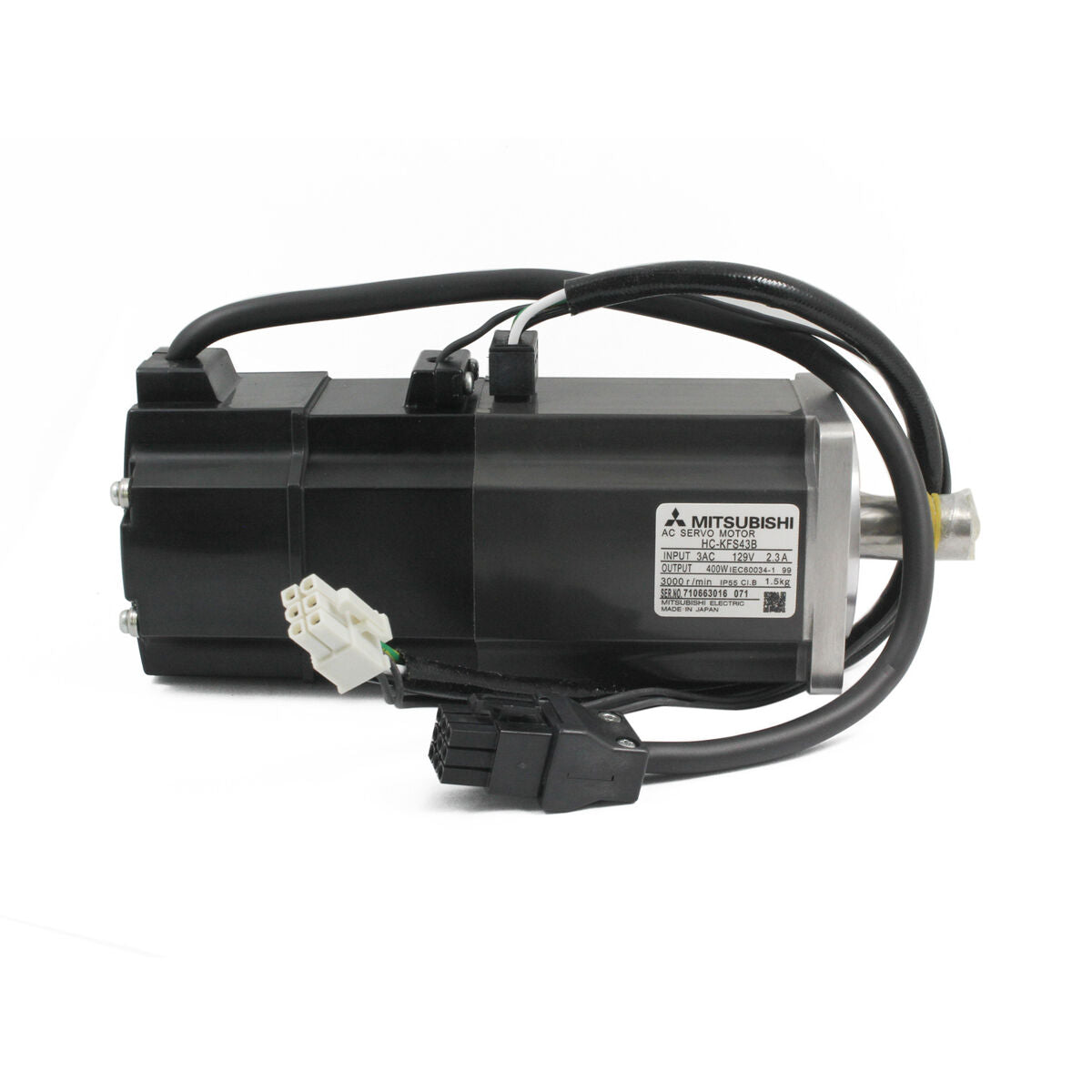

Mitsubishi HC-KFS43B Servo Motor

Description:

HCKFS43B DISCONTINUED BY MANUFACTURER AC SERVO MOTOR 2.3 AMP 3-PHASE 129 VAC 3000 RPM The HCKFS43B is a high-performance servo motor from Mitsubishi's HC series, designed for precision motion control in demanding industrial applications. This motor features advanced feedback technology for accurate speed and position control, making it suitable for applications such as robotics, CNC machines, and automated production systems. Its robust construction and high torque capabilities ensure reliable operation and efficiency, even in challenging environments.

Technical Specifications:

• Model: HCKFS43B
• Type: Servo Motor
• Motor Capacity: 400 W
• Rated Torque: 1.2 Nm
• Rated Speed: 3000 RPM
• Feedback Type: Incremental Encoder
• Power Supply: 200-230V AC (single-phase)
• Operating Temperature Range: 0°C to 40°C
• Storage Temperature Range: -20°C to 60°C
• Dimensions (Ø x L): 80 x 153 mm
• Weight: Approximately 3.0 kg
• Mounting Type: Flange mount
