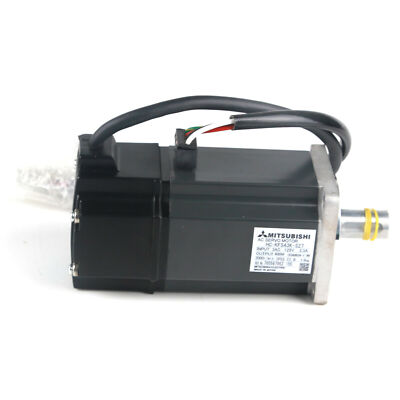

Mitsubishi HC-KFS43K-S27 AC Servo Motor HCKFS43KS27

Description:

HCKFS43KS27 SERVO MOTOR 3PHASE 2.3AMP 129VAC 400W 3000RPM The Mitsubishi HC-KFS43K-S27 is a high-performance AC servo motor designed for precise and reliable motion control in various industrial automation applications. With a rated power of 400W, this motor is optimized for tasks requiring high torque and smooth operation, such as in robotics, CNC machinery, and automated production lines. The HC-KFS43K-S27 features advanced technology that provides excellent speed control and positioning accuracy, integrating seamlessly with Mitsubishi's servo drives and controllers. Its compact design, coupled with a robust construction, ensures durability and efficiency, making it a versatile choice for demanding industrial environments.

Technical Specifications:

• Model: HC-KFS43K-S27
• Type: AC Servo Motor
• Rated Power: 400W
• Rated Voltage: 200V AC
• Rated Current: 2.0A
• Rated Torque: 1.2 Nm (continuous)
• Rated Speed: 3000 RPM
• Feedback Device: 17-bit encoder
• Insulation Class: Class F
• Operating Temperature Range: 0°C to 40°C
• Protection Class: IP65 (with encoder and motor shaft)
• Dimensions: Approximately 80 mm (diameter) x 200 mm (length) (dimensions may vary slightly)
• Weight: Approximately 3.0 kg
• Features: High torque density, smooth and precise operation, high-resolution feedback system, compatibility with Mitsubishi servo drives and controllers
• Compliance: CE, RoHS
