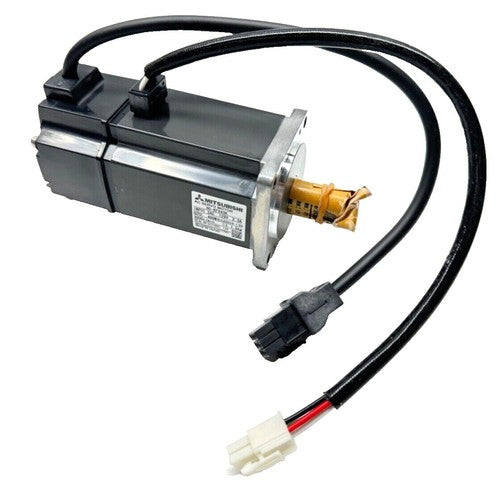

Mitsubishi HC-KFS46-S13 Servo Motor HCKFS46S13

Description:

HCKFS46S13  AC SERVO MOTOR 3PH 2.9AMP 102V 400W 6000RPM The Mitsubishi HC-SF52K-S1 is a high-performance AC servo motor designed to provide precise and efficient motion control in various industrial applications. This model is part of Mitsubishi’s advanced servo motor series, known for its reliability and accuracy. The HC-SF52K-S1 features a robust construction and high torque density, making it suitable for demanding tasks such as those found in robotics, CNC machinery, and automated manufacturing systems. Its integration with Mitsubishi’s servo drives ensures optimal performance and smooth operation, enhancing overall system efficiency.

Technical Specifications:

• Model: HC-SF52K-S1
• Type: AC Servo Motor
• Rated Power: 750W
• Rated Voltage: 200V AC
• Rated Current: 3.5A
• Rated Torque: 2.2 Nm (continuous)
• Rated Speed: 3000 RPM
• Feedback Device: 17-bit encoder (incremental or absolute)
• Insulation Class: Class F
• Operating Temperature Range: 0°C to 40°C
• Protection Class: IP65 (with encoder and motor shaft)
• Dimensions: 100 mm (diameter) x 240 mm (length) (approximate)
• Weight: Approximately 5.5 kg
• Features: High torque density, smooth operation, high-speed performance, and compatibility with Mitsubishi servo drives
• Compliance: CE, RoHS
