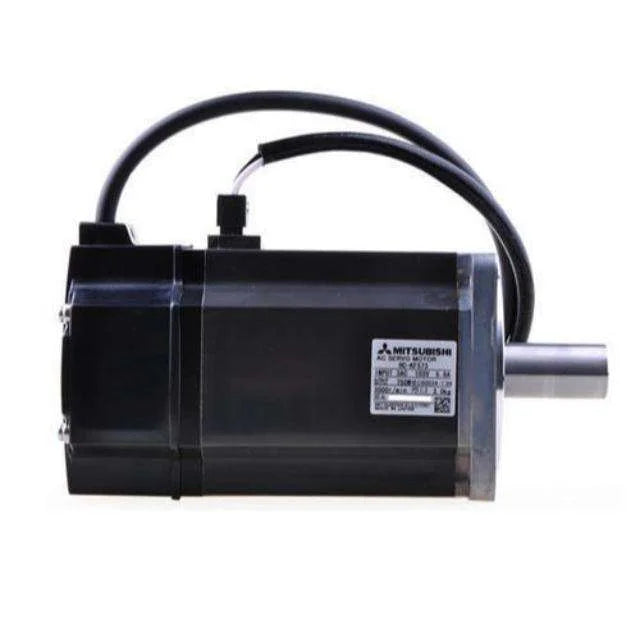

Mitsubishi HC-KFS73 Programmable Logic Controller AC Servo Motor Drive HCKFS73

Description:

The Mitsubishi HC-KFS73 is a 750-watt AC servo motor from the HC-KFS series, designed for precision motion control in automation environments. Featuring a compact, low-inertia design, this motor operates at a rated speed of 3000 RPM and supports peak speeds up to 4500 RPM, making it ideal for fast-response applications. It integrates a 131,072-pulse incremental encoder (17-bit resolution), enabling highly accurate positioning and velocity feedback. Designed for compatibility with Mitsubishi MR-J2S servo amplifiers, the HC-KFS73 provides smooth, efficient control in applications such as robotics, conveyors, and machine tools. With its IP55-rated sealed housing and flange-mount design, the motor ensures durability in industrial settings.

Technical Specifications:

Manufacturer: Mitsubishi Electric
Model number: HC-KFS73
Series: HC-KFS
Rated power: 750 W (0.75 kW)
Rated speed: 3000 RPM
Maximum speed: 4500 RPM
Rated torque: 2.4 Nm
Peak torque: 7.2 Nm
Rated current: Approx. 5.8 A
Voltage class: 200 V
Encoder: Incremental, 17-bit (131,072 ppr)
Insulation class: F
Protection rating: IP55
Cooling method: Natural cooling
Mounting: Flange mount
Weight: Approx. 2.5 kg
Compatible amplifiers: Mitsubishi MR-J2S series
