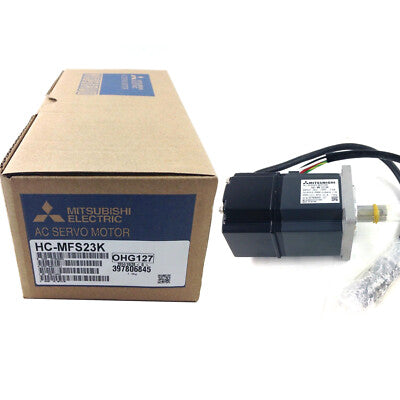

Mitsubishi HC-MFS23K 200W AC Servo MOTOR KEY HCMFS23K

Description:

The Mitsubishi HC-MFS23K is a compact and high-performance AC servo motor designed for precision motion control applications. Part of the HC-MFS series, this servo motor offers a rated output of 200W and is ideal for systems requiring accurate positioning, high torque density, and reliable operation. It features a small form factor with a low-inertia rotor, making it suitable for fast-response applications such as robotics, conveyors, and pick-and-place machines. The HC-MFS23K pairs seamlessly with Mitsubishi’s servo amplifiers for optimal performance.

TECHNICAL SPECIFICATIONS:

Model: HC-MFS23K
Series: HC-MFS
Motor Type: AC Servo Motor
Rated Power Output: 200W (0.2kW)
Rated Torque: 0.64 Nm
Maximum Torque: Approx. 1.91 Nm
Rated Speed: 3000 RPM
Maximum Speed: 6000 RPM
Rated Current: Approx. 1.4 A
Voltage Class: 200V
Encoder Type: Incremental encoder (typically 131072 ppr)
Rotor Inertia: Low-inertia type
Cooling Method: Natural cooling (self-cooled)
Protection Class: IP65 (excluding shaft and connectors)
Mounting Type: Flange mount
Shaft: Straight shaft with key
Ambient Temperature: 0°C to 40°C (32°F to 104°F)
Weight: Approx. 1.1 kg (2.4 lbs)
