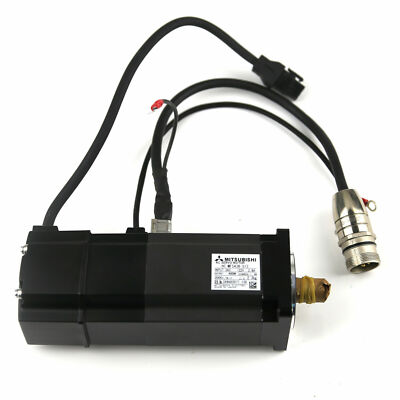

Mitsubishi HC-MFS43B-S13 AC Servo MOTOR DRIVER ELECTRIC DRIVE PLC MODULE HCMFS43BS13

Description:

The Mitsubishi HC-MFS43B-S13 is a high-performance AC servo motor built for precision motion control applications. Delivering 400W of rated power and a rated speed of 3000 RPM, this compact motor offers reliable performance with a built-in high-resolution 131072 pulse/rev encoder. The straight shaft with keyway and flange mount design makes it ideal for automation systems, including robotics, conveyors, CNC machinery, and other industrial positioning tasks. Designed to pair with Mitsubishi MR-J3 series servo amplifiers, this motor ensures fast response, accurate control, and dependable operation in demanding environments.

TECHNICAL SPECIFICATIONS:

Model: HC-MFS43B-S13
Manufacturer: Mitsubishi Electric
Motor Type: AC Servo Motor
Rated Output: 400W
Rated Speed: 3000 RPM
Rated Torque: 1.27 Nm
Peak Torque: 3.81 Nm
Encoder: 131072 pulses/rev (incremental)
Shaft Type: Straight with keyway
Mounting Style: Flange mount
Cooling Method: Natural convection (self-cooled)
Power Supply: 3-phase
Insulation Class: F
Protection Class: IP65 (when mated)
Compatible Amplifier Series: Mitsubishi MR-J3
Brake: No (non-brake type)
