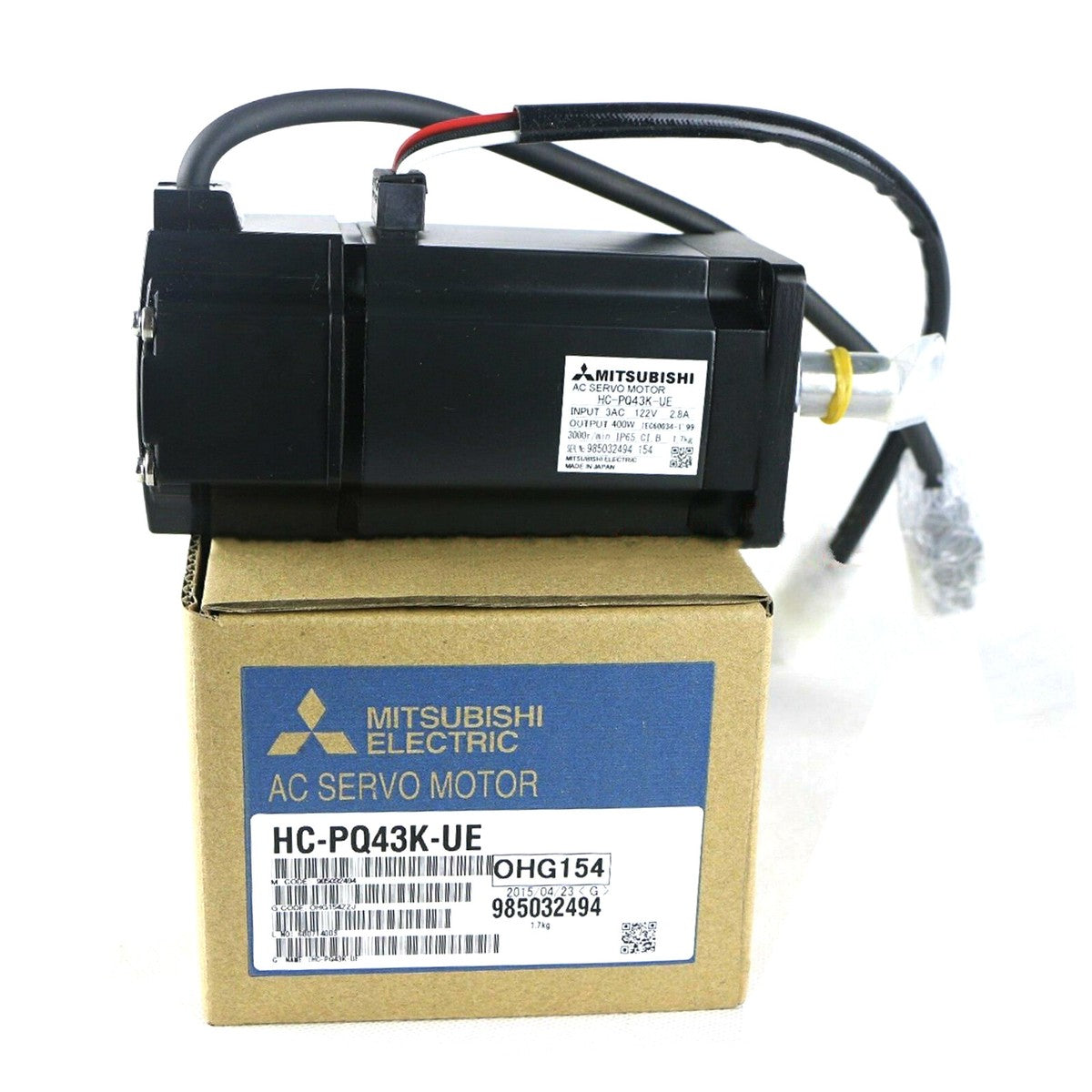

Mitsubishi HC-PQ43K-UE Servo Motor HCPQ43KUE

Description:

The Mitsubishi HC‑PQ43K‑UE is an AC servo motor designed for high‑precision motion control in industrial automation systems. Commonly installed in CNC machines, robotic systems, automated assembly lines, and material handling equipment, it delivers smooth torque, accurate positioning, and responsive speed control. Maintenance teams, system integrators, and OEMs use this servo motor for system replacements, upgrades, and new automation implementations where reliable motion performance and precise control are essential.

Applications:

This Mitsubishi AC servo motor is used in automation systems that require dependable and precise motion control. Typical applications include CNC machining centers, robotic arms, packaging and material handling equipment, automated conveyors, and pick‑and‑place systems where accurate torque, responsive speed regulation, and precise position feedback are critical for operational efficiency and product quality.

Technical Specifications:

• Manufacturer Part Number (MPN): HC‑PQ43K‑UE
• Product Type: AC Servo Motor
• Rated Power: 400 W (model class)
• Rated Voltage: 200–230 VAC
• Rated Current: Approx. 2.8 A
• Rated Torque: Approx. 1.27 Nm
• Rated Speed: Approx. 3000 RPM
• Maximum Speed: Approx. 4500 RPM
• Feedback Type: Integrated encoder feedback
• Mounting Type: Flange mount
• Operating Temperature: ‑10 °C to 40 °C
• Storage Temperature: ‑20 °C to 60 °C
• Protection Class: IP65 (motor)
• Cooling Method: Self‑ventilated or forced air

Common Replacements:

• Mitsubishi HC‑PQ43K‑UEA (variant)
• Yaskawa SGM7J‑04A
• Panasonic MINAS A5 400 W
