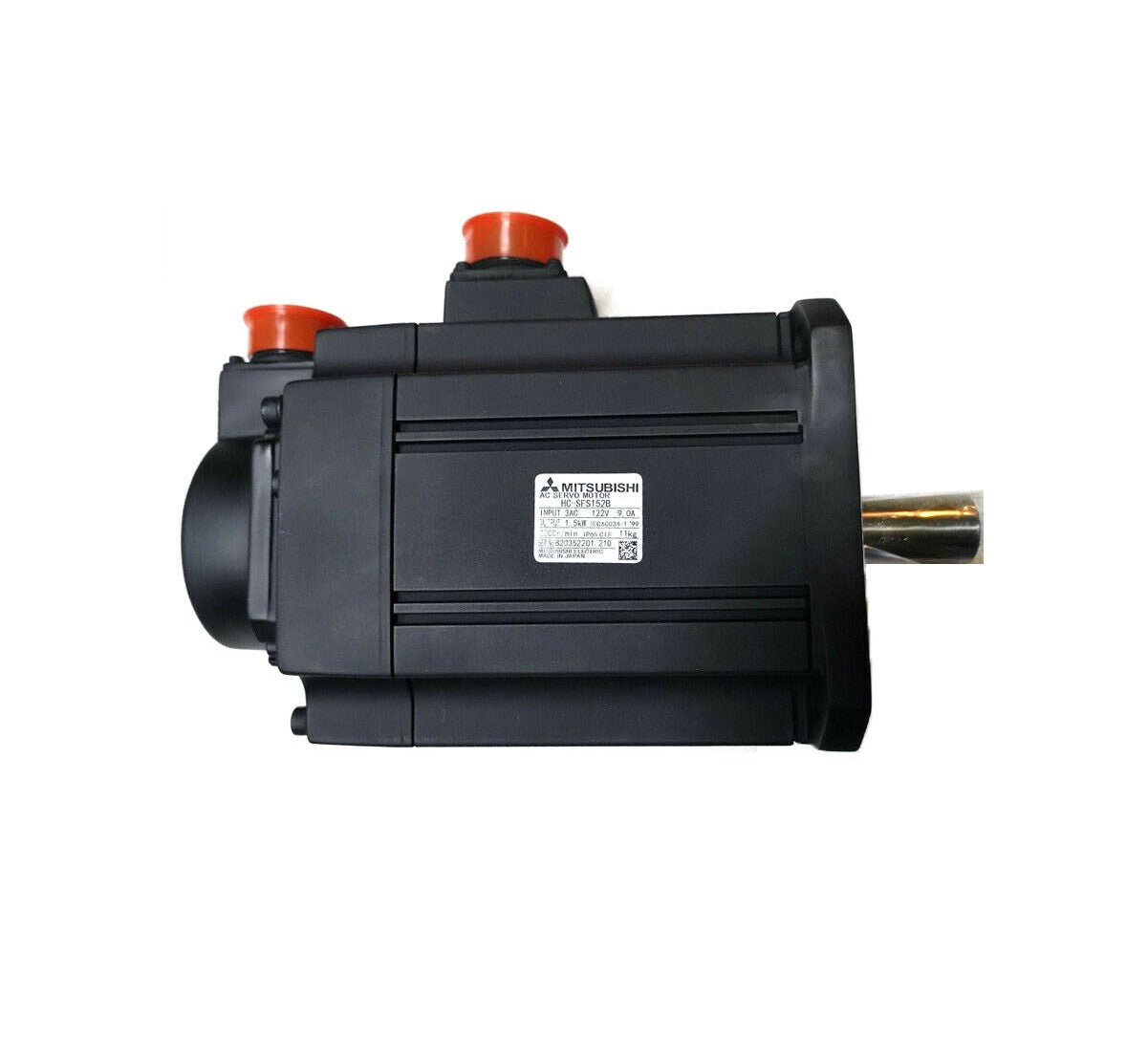

Mitsubishi HC-SFS152B AC Servo Motor Programmable Logic Controller HCSFS152B

Description:

The Mitsubishi HC-SFS152B is a medium-inertia AC servo motor from the MELSERVO J2S series, designed for precise motion control in industrial automation systems. Commonly installed in CNC machines, robotics, conveyors, and automated production equipment, it delivers stable torque and accurate positioning with encoder feedback. Maintenance teams, system integrators, and OEMs use this servo motor for system upgrades, repairs, and replacements where consistent performance and reliability are required.

Applications:

The Mitsubishi HC-SFS152B servo motor is used in industrial environments requiring controlled motion and positioning accuracy. Typical applications include CNC machining centers, automated assembly lines, packaging machinery, material handling systems, and robotics where smooth motion, repeatability, and stable torque output are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): HC-SFS152B
• Product Type: AC Servo Motor (Medium Inertia)
• Series: MELSERVO J2S
• Rated Output Power: 1.5 kW
• Rated Speed: ~2000 RPM
• Rated Torque: ~7.16 Nm
• Peak Torque: ~21.6 Nm
• Rated Current: ~9 A
• Voltage Class: ~200 VAC (typical servo class)
• Encoder: Built-in feedback encoder
• Brake: Electromagnetic brake included (B type)
• Protection Rating: IP65 (sealed industrial design)
• Cooling: Totally enclosed, self-cooled
• Insulation Class: Class F
• Mounting: Flange mount

Common Replacements:

• Mitsubishi HG-SR152B
• Mitsubishi HF-SP152B
• Mitsubishi HC-SFS152
