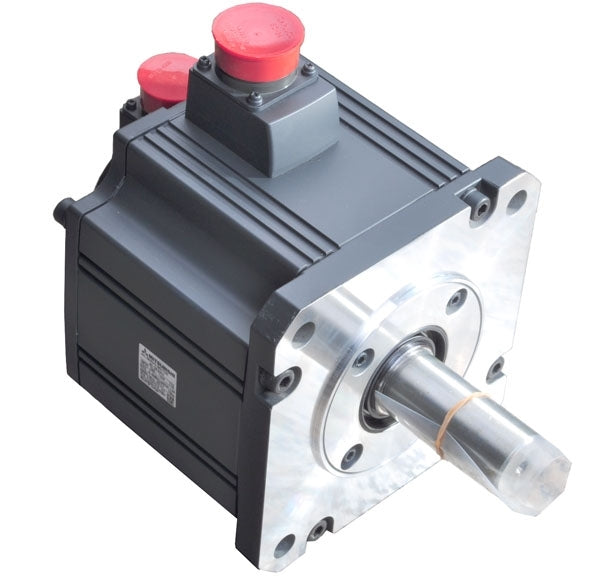

Mitsubishi HC-SFS353 Servo Motor HCSFS353

Description:

The Mitsubishi HC-SFS353 is a high-performance servo motor designed for precise motion control in industrial automation systems. Commonly used in CNC machines, robotics, and material handling systems, it offers excellent torque, speed, and accuracy for demanding applications. Maintenance teams, system integrators, and OEMs use this servo motor for system control, upgrades, and replacements in automation systems that require smooth and efficient motion performance with minimal vibration.

Applications:

The Mitsubishi HC-SFS353 servo motor is ideal for high-precision applications that require reliable torque and speed control. It is widely used in CNC machines, robotics, automated production lines, packaging systems, and conveyor systems where motion accuracy and smooth operation are critical to ensuring process efficiency and consistency.

Technical Specifications:

• Manufacturer Part Number (MPN): HC-SFS353
• Product Type: AC Servo Motor
• Rated Power: 3.5 kW
• Rated Voltage: 200-230 VAC
• Rated Current: 13.0 A
• Rated Speed: 3000 RPM
• Rated Torque: 10.5 Nm
• Maximum Speed: 5000 RPM
• Feedback: Absolute encoder
• Mounting Type: Flange mount
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -20°C to 60°C
• Protection Class: IP65 (motor)
• Cooling Method: Forced air cooling

Common Replacements:

• Mitsubishi HC-SFS352
• Yaskawa SGM7J-10A
• Panasonic MINAS A5 3.5 kW
