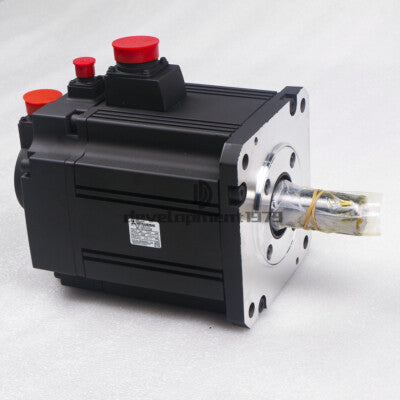

Mitsubishi HC-SFS502B ELECTRIC AC Servo MOTOR HCSFS502B

Description:

The Mitsubishi HC-SFS502B is a 5.0 kW AC servo motor from the HC-SFS series, engineered for high-performance motion control in demanding industrial environments. This motor is designed for precision speed, torque, and position control when paired with Mitsubishi servo amplifiers, particularly the MR-J2S and MR-J3 series. With a robust flange-mount design, high torque density, and reliable encoder feedback, the HC-SFS502B is ideal for applications such as CNC machinery, robotics, automated manufacturing, and packaging systems.

TECHNICAL SPECIFICATIONS:

Model: HC-SFS502B
Series: HC-SFS
Motor Type: AC Servo Motor
Rated Output: 5.0 kW
Rated Speed: 2000 RPM
Maximum Speed: 3000 RPM
Rated Torque: 23.9 Nm
Peak Torque: Approx. 47.8 Nm
Voltage: 3-phase 200V AC
Current: Approx. 24.8 A
Feedback Device: Incremental encoder (131072 pulses/rev)
Mounting Type: Flange mount
Shaft Type: Straight shaft with keyway
Insulation Class: Class B
Protection Class: IP65 (excluding shaft)
Compatible Drives: MR-J2S-500B, MR-J3-500B, etc.
Cooling Method: Natural convection or forced air (depending on setup)
Brake: Without brake
Ambient Temperature: 0°C to 40°C (32°F to 104°F)
Weight: Approx. 19 kg (41.9 lbs)
