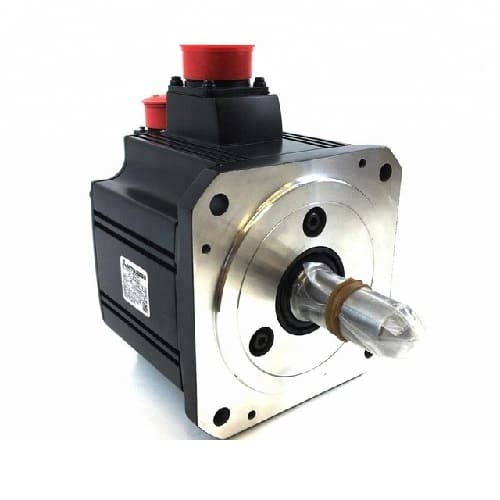

Mitsubishi HC-SFS52B Servo Motor Industrial Automation Industrial Electrical HCSFS52B

Description:

The Mitsubishi HC-SFS52B is a medium-inertia AC servo motor from the MELSERVO series, designed for precise motion control in industrial automation systems. Commonly installed in CNC machines, robotics, conveyors, and automated production equipment, it provides stable torque and accurate positioning with encoder feedback. Maintenance teams, system integrators, and OEMs use this servo motor for system upgrades, repairs, and replacements where consistent performance and reliability are required.

Applications:

The Mitsubishi HC-SFS52B servo motor is used in industrial environments requiring controlled motion and positioning accuracy. Typical applications include CNC machinery, automated assembly lines, packaging equipment, material handling systems, and robotics where smooth motion, repeatability, and stable torque output are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): HC-SFS52B
• Product Type: AC Servo Motor (Medium Inertia)
• Series: MELSERVO HC
• Rated Output Power: 0.5 kW (500 W)
• Rated Voltage: 200 VAC class
• Rated Current: ~3.2 A
• Rated Speed: ~2000 RPM
• Maximum Speed: ~3000 RPM
• Rated Torque: ~2.39 Nm
• Maximum Torque: ~7.6 Nm
• Encoder: Built-in absolute encoder (17-bit, ~131,072 pulses/rev)
• Shaft Type: Straight shaft with electromagnetic brake
• Mounting: Flange mount (~130 mm frame)
• Protection Rating: IP65
• Operating Temperature: 0 °C to 40 °C
• Status: Discontinued

Common Replacements:

• Mitsubishi HG-SR52B
• Mitsubishi HF-SP52B
• Mitsubishi HC-SFS52
