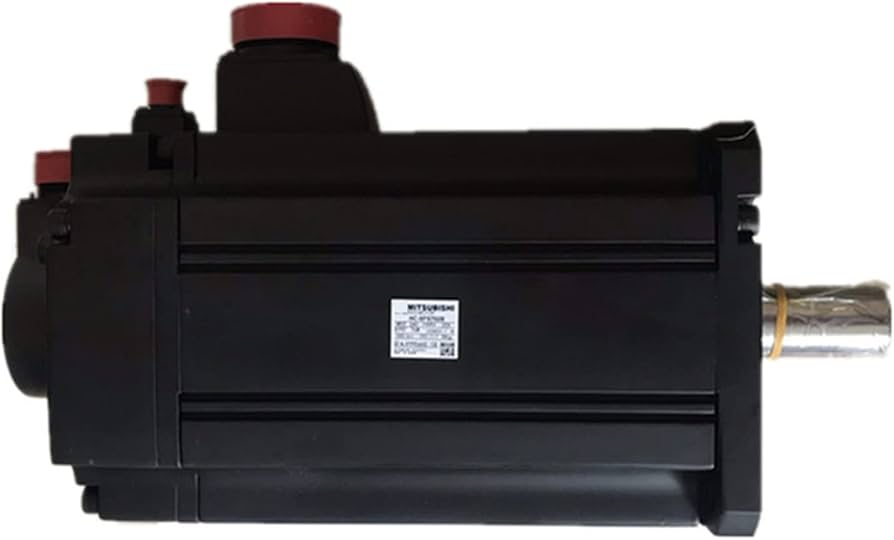

Mitsubishi HC-SFS702B Servo Motor HCSFS702B

Description:

The Mitsubishi HC-SFS702B AC Servo Motor is used in industrial motion control systems to deliver high-precision positioning, speed, and torque control with integrated braking for heavy-duty applications. Commonly installed in CNC machines, large automation equipment, robotics, and vertical axis systems requiring high torque and secure load holding. Maintenance teams, OEMs, and system integrators use this part for replacement, retrofit, and upgrading of high-performance servo-driven systems.

Applications:

The Mitsubishi HC-SFS702B servo motor is widely used in industrial automation environments where high power, accuracy, and holding capability are required. It is commonly applied in machine tools, conveyor systems, heavy-duty packaging machines, material handling systems, and precision manufacturing equipment where stable positioning and reliable performance under load are critical.

Technical Specifications:

• Manufacturer Part Number (MPN): HC-SFS702B
• Product Type: AC Servo Motor with Brake
• Series: Mitsubishi HC-SFS Series
• Rated Output Power: 7.0 kW
• Rated Voltage: 200 VAC class
• Rated Speed: Approx. 2000–3000 RPM
• Encoder Type: High-resolution incremental encoder
• Brake: Equipped with electromagnetic brake
• Shaft Type: Straight shaft (keyed)
• Protection Class: IP65 (excluding shaft area)
• Cooling Method: Forced air cooling
• Mounting: Flange mount

Common Replacements:

• Mitsubishi HC-SFS702
• Mitsubishi HG-SR702B
• Mitsubishi HF-SP702B
