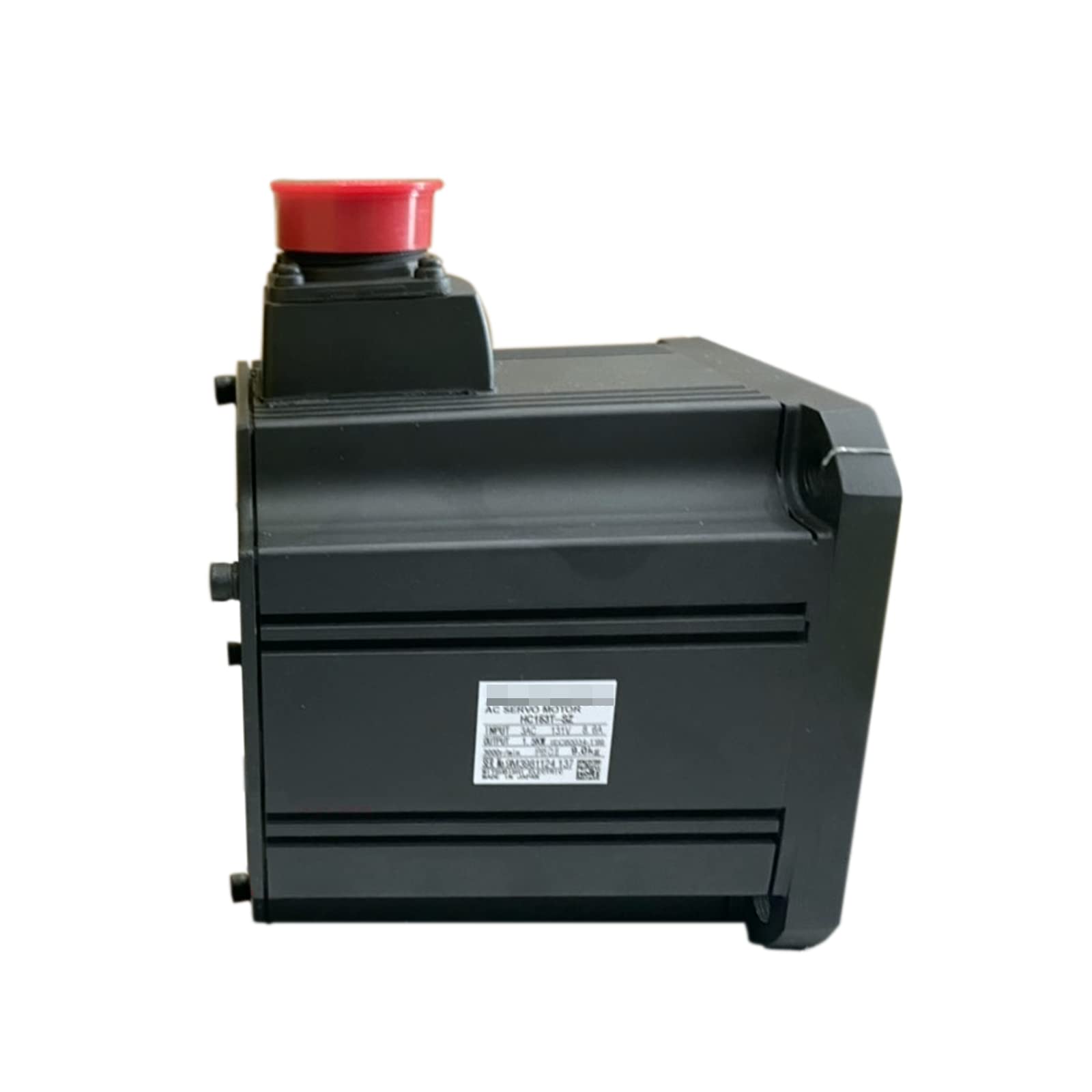

Mitsubishi HC153T-SZ Servo Motor HC153TSZ

Description:

HC153TSZ DISCONTINUED BY MANUFACTURER SERVO MOTOR AC 1.5KW 9A 3000RPM 122V The HC153T-SZ is a high-performance AC servo motor from Mitsubishi, designed for demanding motion control applications in industrial automation. This motor features a high torque output and precise speed control, making it ideal for use in robotics, CNC machinery, and complex automated systems. With advanced feedback systems and robust construction, the HC153T-SZ ensures smooth and reliable operation even under heavy loads. Its compact design allows for easy integration into various machinery setups, enhancing overall system efficiency and accuracy.

Technical Specifications:

• Type: AC Servo Motor
• Model: HC153T-SZ
• Rated Power: 1.5 kW
• Rated Voltage: 200-230V AC
• Rated Current: 6.0 A
• Rated Speed: 3000 RPM
• Torque: 4.5 Nm (Nominal Torque)
• Encoder Resolution: 2500 P/R
• Feedback Type: Incremental Encoder
• Frame Size: 80 mm x 80 mm
• Dimensions (LxWxH): 240 mm x 120 mm x 120 mm
• Weight: Approx. 6.0 kg
• Operating Temperature Range: 0°C to 40°C
• Protection Class: IP65 (dust-tight and protected against water jets)
