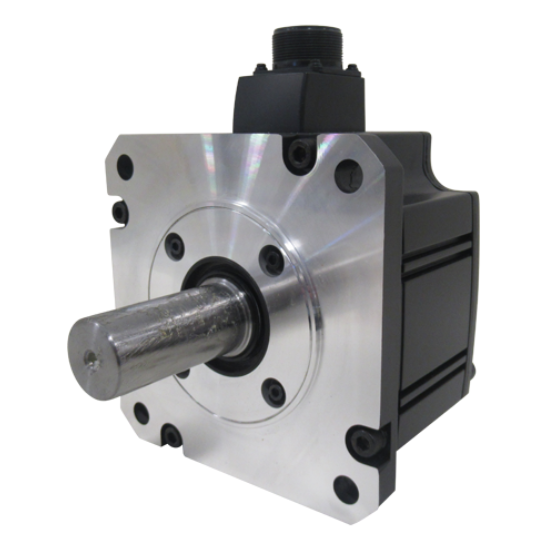

Mitsubishi HC202S-A4 AC Servo Motor HC202SA4

Description:

The Mitsubishi HC202S‑A4 AC servo motor is a high‑precision motion control motor used in industrial automation systems for speed, position, and torque control. It is commonly installed on CNC machines, robotics, packaging equipment, and automated assembly lines to deliver accurate, repeatable motion performance. Maintenance teams and system integrators use this motor for motion system upgrades, retrofits, and replacement of worn or failed servo motors.

Applications:

The Mitsubishi HC202S‑A4 servo motor is widely used in motion control applications where precise feedback and dynamic response are critical. It is commonly found in pick‑and‑place systems, conveyor indexing, gantry machines, CNC machining centers, and material handling equipment where encoder feedback and closed‑loop control support high‑speed positioning, synchronization, and quality‑critical operations.

Technical Specifications:

• Model: HC202S‑A4
• Motor type: AC servo motor
• Rated power: ~0.2 kW class (platform dependent)
• Rated voltage: AC (typically 200–230 VAC)
• Feedback: Built‑in high‑resolution encoder
• Rated speed: High RPM operational range
• Torque: Continuous and peak torque per motor class
• Mounting: Flange mount compatible with machine axis
• Shaft type: Keyed shaft
• Insulation: Industrial rated insulation class
• Protection: Designed for industrial environments
• Operating temperature: Standard industrial range
• Designed for: Closed‑loop motion control with feedback‑based drives

Common Replacements:

• Mitsubishi HC‑SF202 servo motor
• Yaskawa SGMAV‑04ADA61
• Panasonic Minas A5 200 W servo motor
