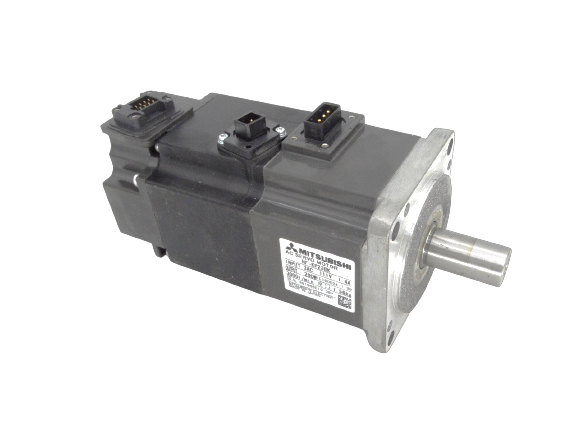

Mitsubishi HF-KP23BK Servo Motor HFKP23BK

Description:

HFKP23BK AC SERVO MOTOR HF SERIES ULTRA LOW INERTIA 0.2 KW OUTPUT 3000 RPM W/ EM BRAKE KEYWAY SHAFT The Mitsubishi HF-KP23BK is a compact and high-performance AC servo motor designed for precise and reliable motion control in industrial automation applications. With a rated power of 200W, this motor is suitable for tasks requiring smooth operation and high accuracy, such as in robotics, CNC machinery, and automated production systems. The HF-KP23BK features advanced control technology and a high-resolution encoder for accurate feedback, ensuring optimal speed and position control. Its robust design and efficient performance make it a versatile choice for enhancing the performance of various automation setups.

Technical Specifications:

• Model: HF-KP23BK
• Type: AC Servo Motor
• Rated Power: 200W
• Rated Voltage: 200V AC
• Rated Current: 1.0A
• Rated Torque: 0.63 Nm (continuous)
• Rated Speed: 3000 RPM
• Feedback Device: 17-bit encoder
• Insulation Class: Class F
• Operating Temperature Range: 0°C to 40°C
• Protection Class: IP65
• Dimensions: Approximately 60 mm (diameter) x 130 mm (length)
• Weight: Approximately 1.8 kg
• Compliance: CE, RoHS
