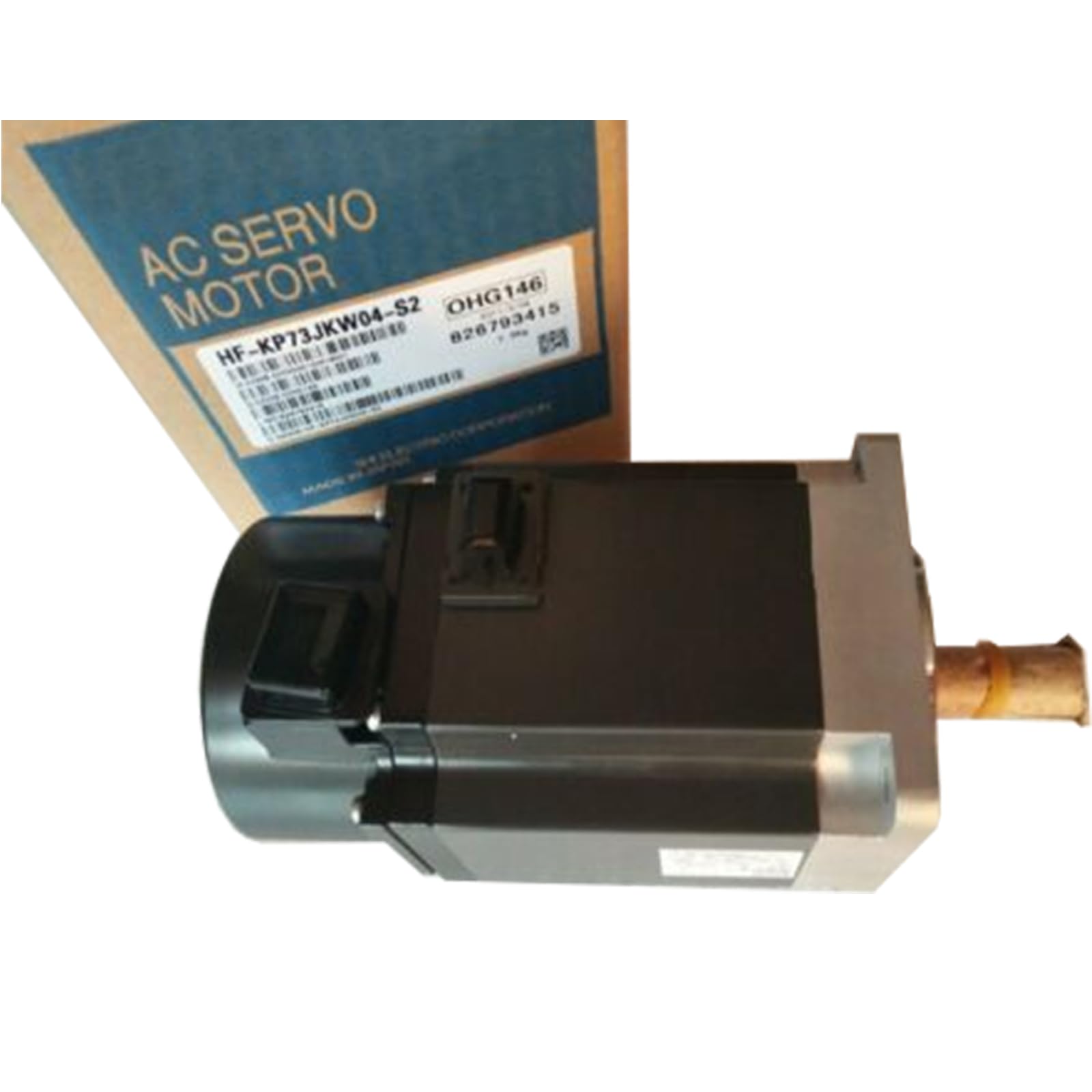

Mitsubishi HF-KP73JKW04-S2 Servo Motor HFKP73JKW04S2

Description:

HFKP73JKW04S2 AC SERVO MOTOR HF SERIES ULTRA LOW INERTIA 0.75 KW OUTPUT 3000 RPM W/O EM BRAKE KEYWAY SHAFT W/ OIL SEAL The HF-KP73JKW04-S2 is a high-precision servo motor manufactured by Mitsubishi Electric, designed to deliver exceptional performance in automated industrial applications. This motor is engineered for high torque and speed, providing precise control for demanding machinery and robotics. Its compact size and advanced feedback system ensure smooth operation and accuracy, making it suitable for applications requiring rapid response and reliability. The HF-KP73JKW04-S2 integrates seamlessly with Mitsubishi's servo drives, offering robust performance and durability in a wide range of industrial environments.

Technical Specifications:

• Model: HF-KP73JKW04-S2
• Type: Servo Motor
• Motor Frame Size: 100 mm
• Rated Output Power: 750 W
• Rated Torque: 2.39 Nm (Newton-meters)
• Rated Speed: 3000 RPM
• Maximum Speed: 4500 RPM
• Feedback Device: Incremental Encoder
• Protection Class: IP65 (environmental protection)
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Weight: Approximately 6.5 kg
• Power Supply Voltage: 220V AC
• Compliance: CE, RoHS
