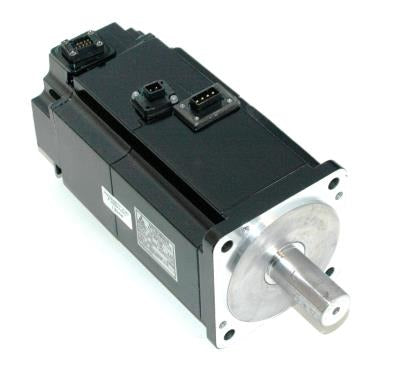

Mitsubishi HF-MP73B HFMP73B Servo Motor

Description:

HFMP73B DISCONTINUED BY MANUFACTURER AC SERVO MOTOR HF SERIES LOW INERTIA 0.75 KW OUTPUT 3000 RPM W/ EM BRAKE STRAIGHT SHAFT The HF-MP73B is a high-performance AC servo motor from Mitsubishi, designed to deliver reliable and precise motion control for a wide range of industrial automation tasks. This motor features a compact and robust design, ideal for applications requiring high torque and accurate speed control, such as robotics, CNC machinery, and automated assembly systems. The HF-MP73B is engineered with advanced feedback technology to ensure smooth operation and exceptional performance, even in demanding environments. Its high efficiency and reliability make it a valuable component for enhancing the effectiveness and precision of various automation processes.

Technical Specifications:

• Type: AC Servo Motor
• Model: HF-MP73B
• Rated Power: 0.75 kW
• Rated Voltage: 200-230V AC
• Rated Current: 3.0 A
• Rated Speed: 3000 RPM
• Torque: 1.8 Nm (Nominal Torque)
• Encoder Resolution: 2500 P/R
• Feedback Type: Incremental Encoder
• Frame Size: 60 mm x 60 mm
• Dimensions (LxWxH): 180 mm x 90 mm x 90 mm
• Weight: Approx. 2.5 kg
• Operating Temperature Range: 0°C to 40°C
• Protection Class: IP65 (dust-tight and protected against water jets)
