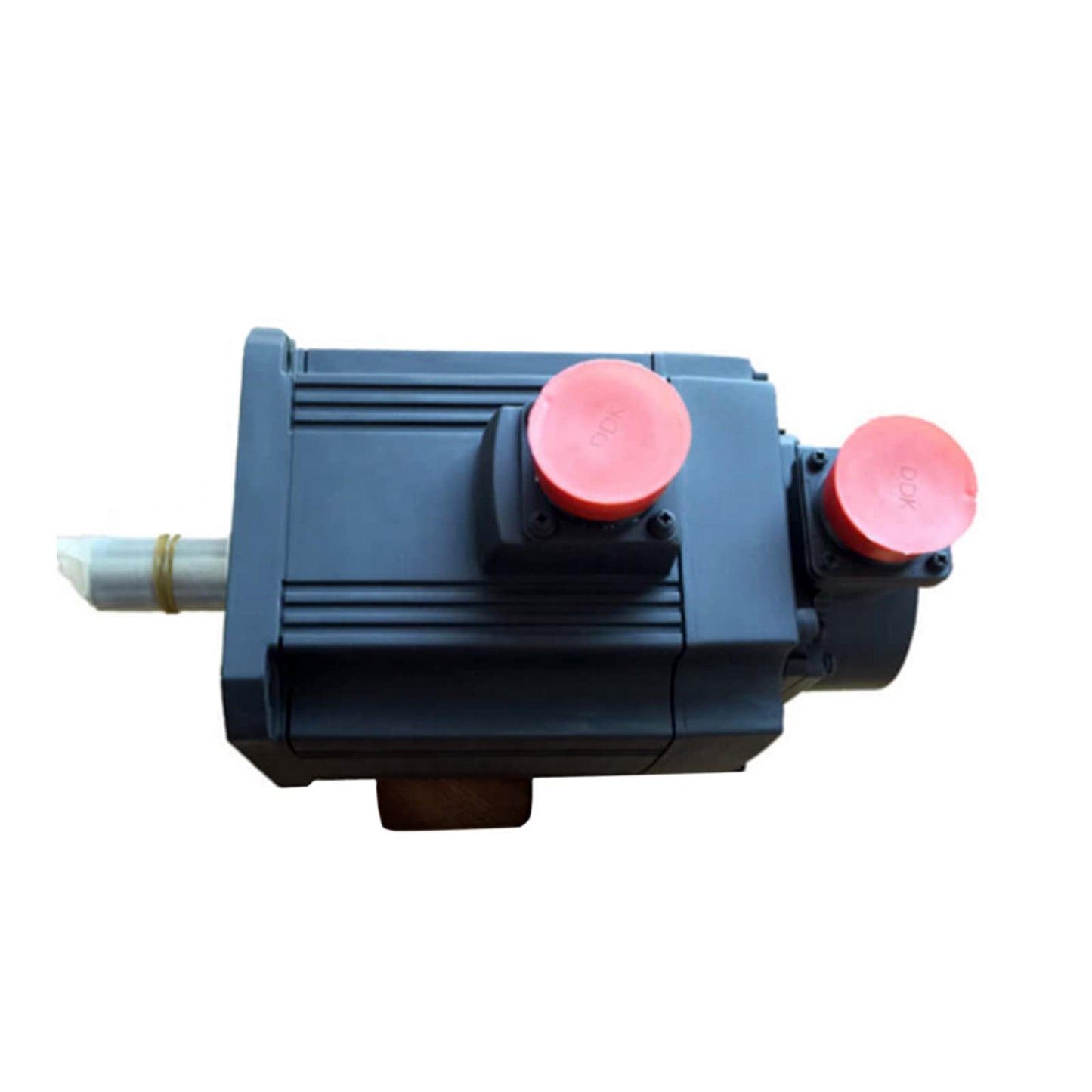

Mitsubishi HF54S-A48 AC Servo Motor HF54SA48

Description:

The Mitsubishi HF54S‑A48 AC servo motor is an industrial motion control motor used to deliver precise speed, torque, and position control in automated systems. It is commonly installed on CNC machines, robotics, packaging equipment, and automated assembly lines where accurate motion and repeatability are required. Maintenance teams and system integrators use this motor for motion system upgrades, machine retrofits, and replacement of worn or failed servo motors.

Applications:

The Mitsubishi HF54S‑A48 servo motor is widely used in automation environments requiring controlled motion and high feedback accuracy. It is commonly found in pick‑and‑place mechanisms, indexing conveyors, gantry systems, printing and labeling machines, and robotic axes where encoder feedback and closed‑loop control deliver consistent positioning, synchronization, and dynamic response.

Technical Specifications:

• Model: HF54S‑A48
• Motor type: AC servo motor
• Rated power class: ~0.54 kW (platform dependent)
• Rated voltage: AC (typically 200–230 VAC)
• Feedback: High‑resolution encoder for position/speed feedback
• Rated speed: High RPM operational range
• Torque: Continuous and peak torque per motor rating
• Mounting: Flange mount compatible with machine axis
• Shaft: Keyed shaft for precise mechanical coupling
• Insulation: Industrial‑grade insulation class
• Protection: Designed for industrial environments
• Operating temperature: Industrial range
• Designed for: Closed‑loop motion control with feedback‑based drives

Common Replacements:

• Mitsubishi HC‑MFS54 servo motor
• Yaskawa SGMAV‑04ADA51
• Panasonic Minas A5 400 W servo motor
