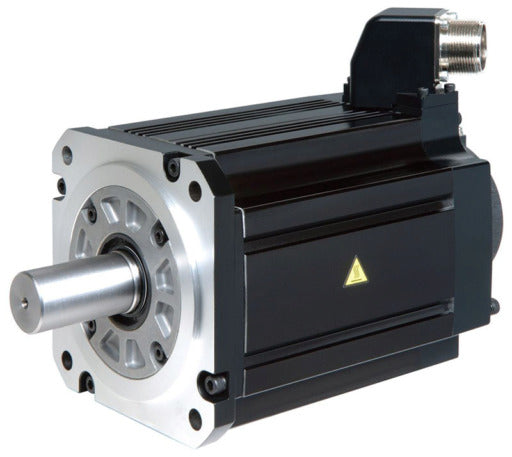

Mitsubishi HG-JR103 AC Servo Motor HGJR103

Description:

HGJR103 SERVO MOTOR HG SERIES LOW INERTIA MEDIUM-LARGE CAPACITY 1 KW 3000 R/MIN STANDARD STRAIGHT SHAFT The HG-JR103 is a high-precision AC servo motor from Mitsubishi’s HG series, designed for applications requiring exceptional performance and accuracy. This motor delivers smooth and reliable motion control with high torque and speed capabilities. Its advanced design and durable construction make it suitable for complex automation tasks where precision and robust performance are crucial.

Technical Specifications:

• Type: AC Servo Motor
• Motor Series: Mitsubishi HG series
• Rated Output Power: 1.0 kW
• Rated Voltage: 200-230V AC
• Rated Current: 5.0A
• Rated Speed: 3000 RPM
• Torque Rating: 3.2 Nm
• Feedback Type: Absolute encoder
• Protection Class: IP65
• Operating Temperature Range: 0°C to 40°C
• Mounting Type: Flange mount
