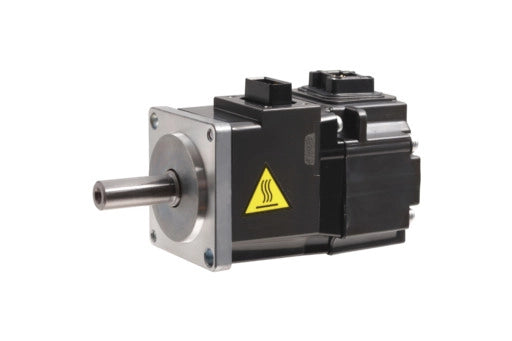

Mitsubishi HG-KR053 MR-J4-10A Servo Motor HGKR053

Description:

Brand: Mitsubishi Model: HG-KR053+MR-J4-10A MPN: HG-KR053+MR-J4-10A The Mitsubishi HG-KR053 is a high-performance AC servo motor, and the MR-J4-10A is a matching servo drive designed to work seamlessly with it. Together, they offer a comprehensive motion control solution for a variety of industrial applications. The HG-KR053 servo motor is known for its high torque density and precise motion control capabilities, while the MR-J4-10A servo drive provides advanced control features and robust performance. This combination is ideal for applications requiring precise positioning, high-speed operation, and reliable performance in automation systems, robotics, and CNC machinery.

Technical Specifications:

• Mitsubishi HG-KR053 Servo Motor
• Model: HG-KR053
• Type: AC Servo Motor
• Rated Power: 0.5 kW
• Rated Voltage: 200V AC
• Rated Current: 2.2 A
• Rated Torque: 0.47 Nm (continuous)
• Rated Speed: 3000 RPM
• Feedback Device: 17-bit encoder
• Insulation Class: Class F
• Protection Class: IP65
• Operating Temperature Range: 0°C to 40°C
• Dimensions: Approximately 100 mm (diameter) x 240 mm (length) (dimensions may vary slightly)
• Weight: Approximately 2.0 kg
• Features: High torque density, precision feedback, robust design
• Mitsubishi MR-J4-10A Servo Drive
• Model: MR-J4-10A
• Type: AC Servo Drive
• Rated Power: 0.1 kW
• Rated Voltage: 200V AC
• Rated Current: 0.6 A
• Control Modes: Position control, speed control, torque control
• Communication Ports:
• RS-232C: For programming and communication
• Ethernet (optional): For network communication
• Operating Temperature Range: 0°C to 55°C
• Dimensions: Approximately 130 mm x 190 mm x 150 mm (dimensions may vary slightly)
• Weight: Approximately 2.5 kg
